MFG PART: 28AX06228S

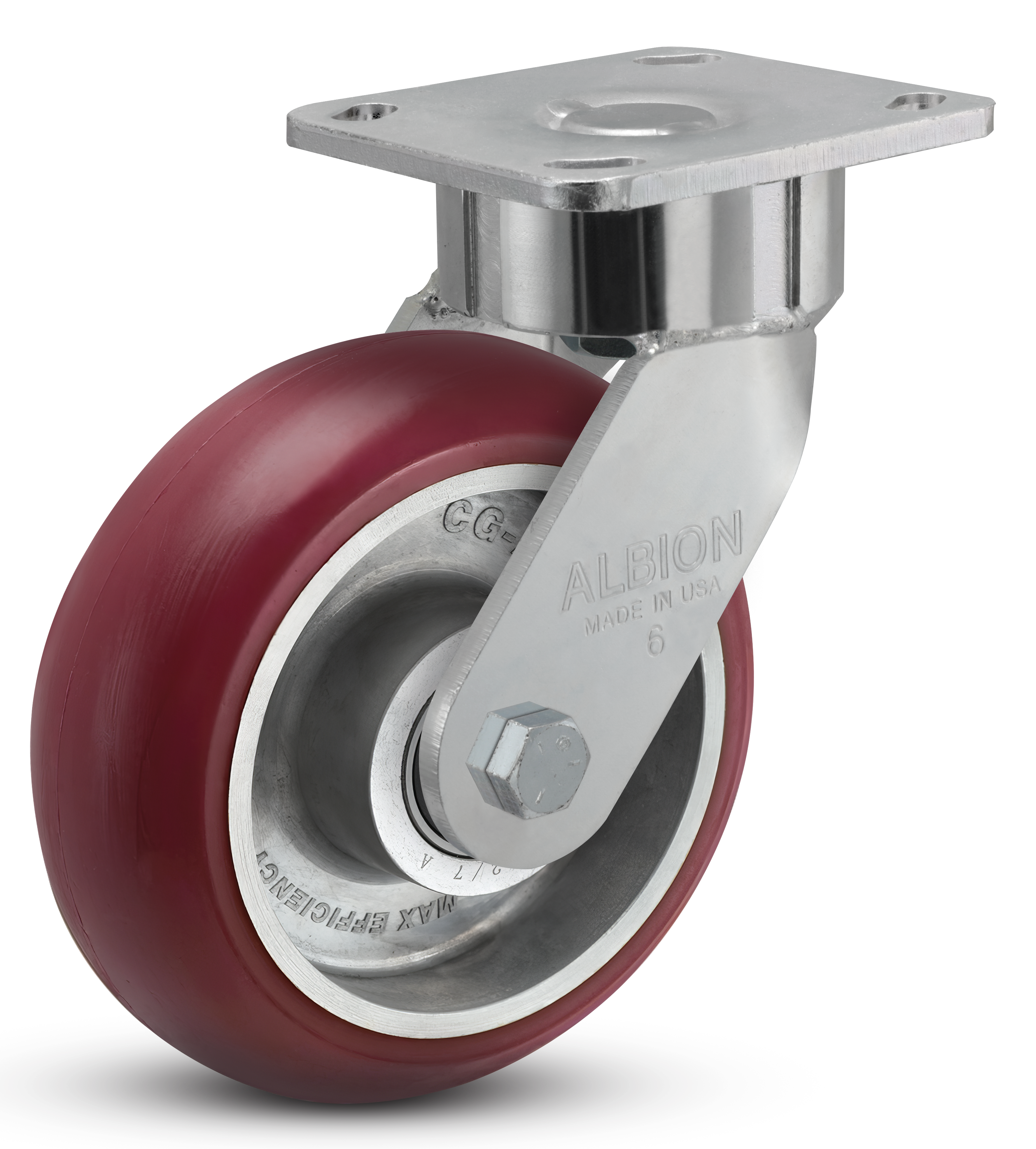

28AX06228S - 6" x 2" Polyurethane Swivel Caster - Albion 28 Series
1250 lbper caster
Regular Price
$155.34
Unit Price
$155.34
per item
1250 lb Load Capacity
Top Plate Mount
-40°F to +180°F°F Max Temp
Swivel
5.5" Swivel Radius
7.5" Mount Height
Specifications
Dimensions & Mounting
| Mount Height | 7.5" |
|---|---|
| Fastening Type | Top Plate |
| Fastening Size | 4-1/2" x 4" |
| Swivel Radius | 5.5" |
Load & Performance
| Load Capacity | 1250 lbs |
|---|---|
| Max Temperature | -40°F to +180°F°F |
Materials & Finish
| Wheel Core | Aluminum |
|---|---|
| Finish | Zinc |
| Caster Type | Swivel |
| Brand / Series | Albion 28 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 28AX06228S
Put this 6-inch 28 Series swivel on a cart that operators steer all day, in the maroon compound, where a standard caster runs up the push and pull force.
The 28 Series extended lead trails the wheel farther behind the swivel axis, so the caster steers with less effort and tracks straighter, cutting the operator's push and pull force and rolling quietly. The wheel is polyurethane in the maroon compound on a lightweight aluminum core, non-marking on a finished floor and holding from -40 to 180°F. It is the plain swivel, for the steering corners that roll without a brake.
Ideal applications
- Operator-steered carts wanting the maroon-compound wheel
- Maroon-wheel extended lead that cuts operator push effort
- 6-inch maroon polyurethane on a lightweight aluminum core
For a corner that must hold the cart still, the face-brake 28AX06228SFBK locks the wheel.
Pairs with: the 28AX06228R rigid on the back corners so the front steers and the rear tracks.
Wrong fit? Need an orange-compound wheel or a brake? See the orange swivel 28AN06228S and the maroon face-brake 28AX06228SFBK.
Also in this family: the maroon rigid 28AX06228R, or the full kingpinless caster collection.
3D CAD Model
