4"x2" Polyurethane Swivel Caster Kingpinless Stainless Steel- 120EG04229S

About This Caster - 120EG04229S

Set this 4-inch polyurethane swivel on a steering corner of a washdown or sanitary cart that has to maneuver and stay clean.

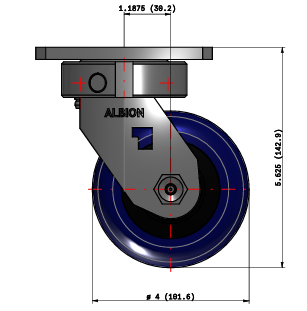

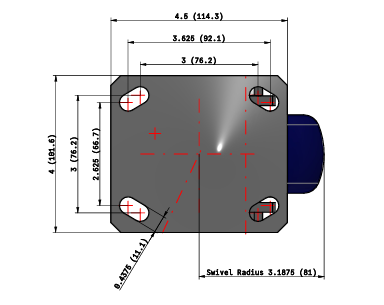

This is where the kingpinless design earns its place: instead of a central kingpin bolt that can loosen and fail under shock, the swivel raceway is welded to the legs inside and out, so the swivel holds up to impact and washdown for years. The blue polyurethane tread is non-marking and easy-rolling, and the stainless frame resists corrosion. It steers on a precision ball bearing, bolts on a 4 by 4-1/2-inch top plate at a 5-5/8-inch mount height, and holds from -40 to 180°F.

Ideal applications

• 4-inch blue PU swivel steering a sanitary washdown cart
• Kingpinless welded raceway taking shock on a stainless swivel
• Non-marking precision-ball swivel on a 4 by 4-1/2 plate

For a corner that has to park and stay put, the 120EG04229SFBD adds a face brake.

Pairs with: the 4-inch rigid 120EG04229R on the fixed corners and this swivel on the steering corners.

Wrong fit? Need a brake or a bigger wheel? See the braked 120EG04229SFBD and the 5-inch swivel 120EG05229S.

Also in this family: the 4-inch nylon swivel 120NX04201S, or the full Albion collection.
