SKU: 2.02256.441 MTG35

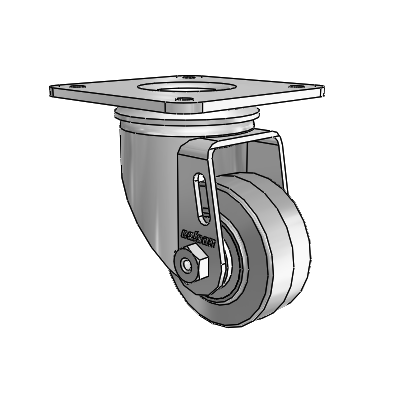

2.5" Performa Rubber 2 Series Swivel Caster - 2.02256.441 MTG35
140 lbper caster
Regular Price
$42.14
Rubber Wheel
2-1/2" x 1-1/4" Wide Wheel
140 lb Load Capacity
Delrin Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-7/8" |
| Fastening Type | Top Plate |
| Fastening Size | 3-1/2" x 3-1/2" |
| Bolt Hole Spacing | 2-5/8" x 2-5/8" |
| Mounting Bolt Size | 1/4" |
| Swivel Radius | 2.4063 |
Load & Performance
| Load Capacity | 140 lbs |
|---|---|
| Bearing Type | Delrin |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Detail | Performa Rubber (Flat) |
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.02256.441 MTG35
Choose this 2.5-inch Performa rubber swivel with the square 3-1/2 by 3-1/2 inch top plate for a frame drilled in a square bolt pattern, the quiet caster whose symmetric plate matches a square mount and seats the same in any orientation.
The 3-1/2 by 3-1/2 inch square plate suits frames laid out on a square hole pattern, where a rectangular plate would not line up, and its symmetry lets the caster mount in any of four orientations. The soft Grey Performa rubber tread runs near-silent and protects finished floors, and the Delrin plain bearing rolls maintenance-free. At 2.5 inches it keeps a low deck. It is the quiet caster for a square-pattern institutional frame.
Ideal applications
- Frame drilled in a square 3-1/2 x 3-1/2 bolt pattern, sealed floor
- Symmetric mount that seats in any orientation
- Quiet institutional cart on a square plate footprint
Skip the square plate if your frame uses a rectangular pattern; the 3-5/8 x 2-1/2 standard plate 31MH25V-03 fits the common footprint.
Pairs with: the braked square MTG35 version on the corners that park the cart.
Wrong fit? Rectangular pattern, larger plate, or a brake? See the standard plate 31MH25V-03 and the larger MTG27 plate 33MH25V-03.
Also in this family: the braked square MTG35 and MTG59 plate 32MH25V-03, or the 2 Series caster collection.
3D CAD Model
