MFG PART: 2.02256.445

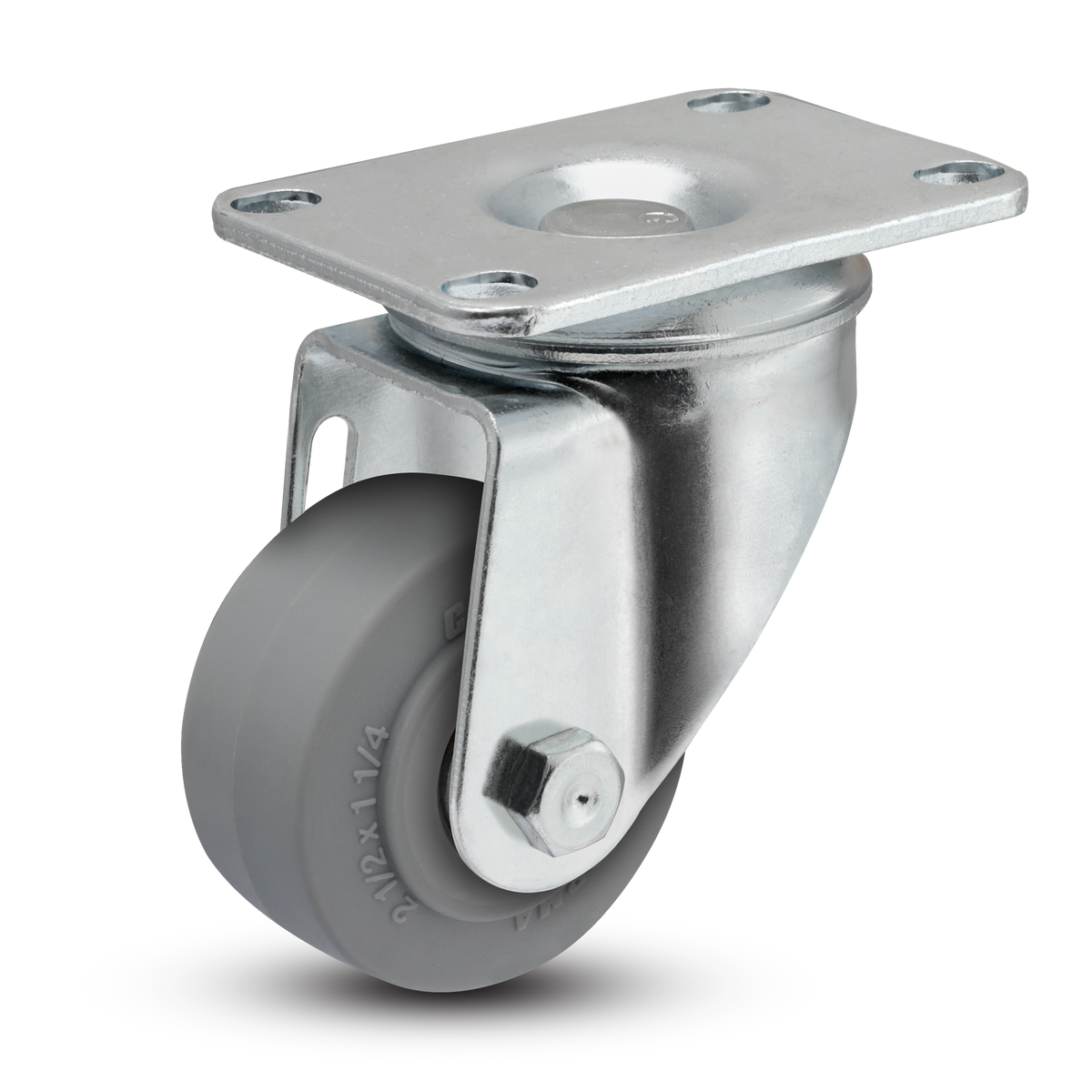

2.5" Performa Rubber 2 Series Swivel Caster - 2.02256.445
140 lbper caster
Regular Price
$18.01
Rubber Wheel
2-1/2" x 1-1/4" Wide Wheel
140 lb Load Capacity
Ball Bearing Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-7/8" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 2.4063 |
Load & Performance
| Load Capacity | 140 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.02256.445
Choose this 2.5-inch Performa rubber swivel with the ball bearing on the standard 3-5/8 by 2-1/2 inch top plate for a busy institutional cart whose frame uses the common 2 Series bolt pattern, the soft non-marking caster that bolts straight on and rolls smooth through traffic.
The standard 2 Series plate drops onto frames already drilled for that footprint, the soft Grey Performa rubber tread runs near-silent and protects finished floors, and the ball bearing keeps the cart rolling through the constant starts and stops of a high-traffic route. At 2.5 inches it keeps a low deck. It is the quiet high-traffic bolt-on caster for a standard-plate institutional cart.
Ideal applications
- Standard-pattern nursing or service cart pushed all shift
- Quiet institutional rig drilled for the common 2 Series plate
- High-traffic bolt-on cart on a finished hospital floor
Skip the ball bearing if the cart rolls only intermittently; the Delrin standard-plate version is the maintenance-free choice.
Pairs with: the braked standard-plate version 31MB25V02-03 on the corners that park the cart.
Wrong fit? Different bolt pattern, or static control? See the larger MTG27 plate 33MB25V-03 and the conductive base plate 31MB25VT-03.
Also in this family: the braked standard plate 31MB25V02-03 and conductive base plate 31MB25VT-03, or the 2 Series caster collection.
