Best place to buy Colson Casters! Ordered heavy duty casters from CasterCentral.com and I had some questions and they helped me troubleshoot my installation. Thanks!!
MFG PART: 2.02256.53 MTG59 BRK1

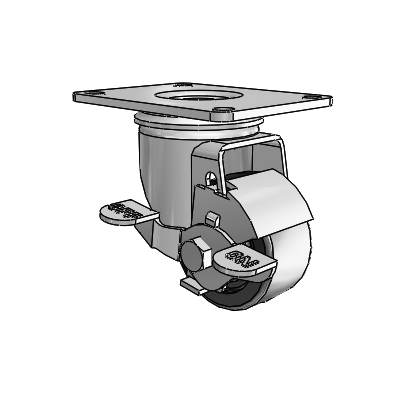

2.5" Polyolefin 2 Series Swivel Caster - 2.02256.53 MTG59 BRK1
200 lbper caster
Regular Price
$19.12
Polyolefin Wheel
2-1/2" x 1-1/4" Wide Wheel
200 lb Load Capacity
Top Lock Brake
Delrin Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-7/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4-1/8" x 3-1/8" |
| Bolt Hole Spacing | 2-3/8" x 3-3/8" to 3-1/2" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 3.8125 |
Load & Performance
| Load Capacity | 200 lbs |
|---|---|
| Bearing Type | Delrin |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.02256.53 MTG59 BRK1
Specify this 2.5-inch polyolefin swivel with the Delrin bearing and top lock brake on the 4-1/8 by 3-1/8 inch plate for the parking corner of a wet-area cart on an oversized frame, the no-rust caster that spreads the load, needs no grease, and locks the wheel still.
The 4-1/8 by 3-1/8 inch plate bolts to that oversized pattern and spreads the load, the molded polyolefin wheel resists the wash, the Delrin plain bearing rolls maintenance-free, and the top lock brake stops the wheel so the cart holds on a wet floor. At 2.5 inches it keeps a low deck. It is the no-rust braked oversized-plate corner for a wet-area cart.
Ideal applications
- Parking corner of an oversized-frame wet cart, 4-1/8 x 3-1/8 plate
- No-rust oversized-plate rig locked at a wet station
- Specific-pattern cart that holds still on a spread load
Skip the brake on corners that only roll and steer; the plain MTG59 Delrin polyolefin 32GH25V-03 turns freely at a lower cost.
Pairs with: the plain MTG59 Delrin polyolefin 32GH25V-03 on the rolling corners.
Wrong fit? No brake, standard plate, or a ball bearing? See the plain MTG59 32GH25V-03 and the braked MTG27 Delrin polyolefin 33GH25V02-03.
Also in this family: the braked MTG27 Delrin polyolefin 33GH25V02-03 and braked square MTG35 Delrin polyolefin 31GH25V02-03, or the 2 Series caster collection.
