MFG PART: 2.03254.95 MTG13

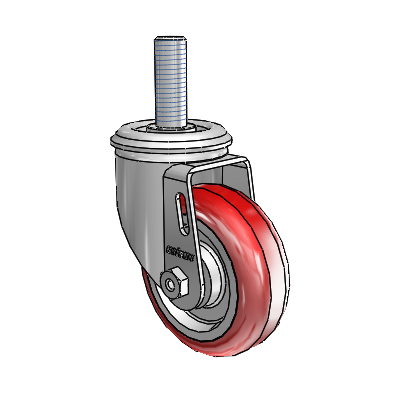

3.5" Polyurethane 2 Series Swivel Caster - 2.03254.95 MTG13
250 lbper caster
Regular Price
$27.50
Polyurethane Wheel
3-1/2" x 1-1/4" Wide Wheel
250 lb Load Capacity
Ball Bearing Bearing
Threaded Stem Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 3-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 4-9/16" |
| Fastening Type | Threaded Stem |
| Fastening Size | 5/8"-11 UNC x 1-3/4" |
| Swivel Radius | 2.9063 |
Load & Performance
| Load Capacity | 250 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 45(±5) Shore D |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Maroon |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.03254.95 MTG13
Pick this 3.5-inch polyurethane swivel with the ball bearing and 5/8-11 threaded stem for a heavy staging frame on a five-eighths tapped boss that moves often, the deep coarse stem that holds the frame and the ball bearing that rolls the weight easy.
The 5/8-11 stem threads deep into a heavier-built boss for a solid hold, the ball bearing carries the load and rolls it with less push than a Delrin bore, the HI-TECH polyurethane tread resists flat-spotting and shop oils, and it stays non-marking. Confirm your boss is 5/8-11 UNC before you order. It is the deep-thread easy-rolling polyurethane swivel for a heavy boss-mounted staging frame.
Ideal applications
- Heavy staging frame on a 5/8-11 tapped boss moved often
- Deep coarse-thread mount sized for a five-eighths ball-bearing stem
- Loaded frame that rolls easy on a ball bearing
Boss is a half-inch thread, or you want the frame to lock? Drop the stem size or choose a total-lock version.
Pairs with: the polyurethane ball rigid 31JB35G-03 on the trailing corners.
Wrong fit? Want a brake or a Delrin bearing? See the polyurethane ball coarse total-lock swivel 31JB35X5805-03 and the polyurethane Delrin coarse-thread swivel 31JH35X58-03.
Also in this family: the polyurethane ball threaded swivel 31JB35X41-03, or the 2 Series caster collection.
