Regular Price
$18.77
Polyurethane Wheel
5" x 1-1/4" Wide Wheel
300 lb Load Capacity
Ball Bearing Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 6-3/16" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 3.8125 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 45(±5) Shore D |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Maroon |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details

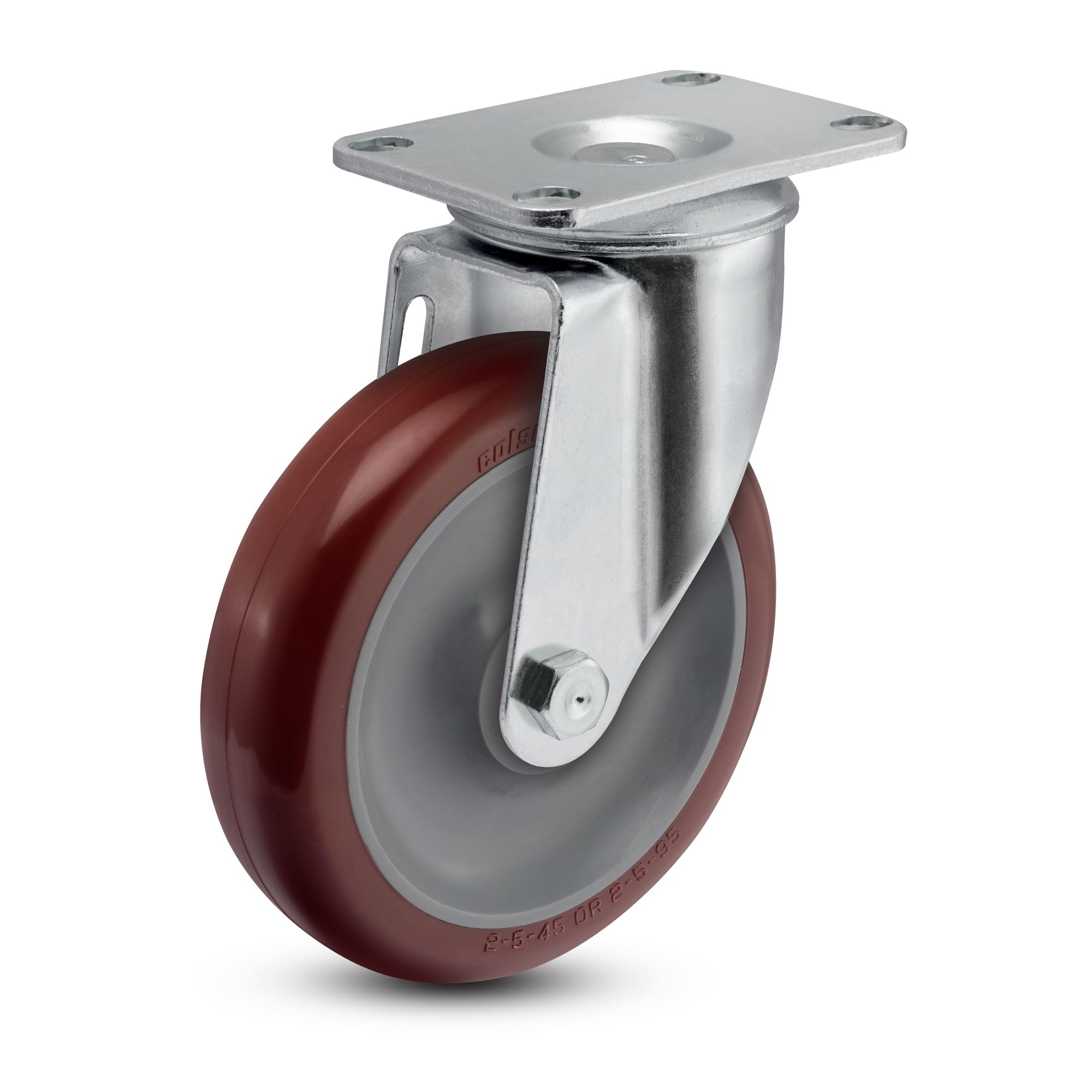

About This Caster - 2.05256.95
Put this 5-inch 2 Series swivel under an institutional cart that carries more than a rubber-wheeled cart can handle, where the load would flatten a soft tread but the floor still cannot take a mark.
The wheel is Colson HI-TECH polyurethane on a polyolefin core, firm enough to carry the load without compression-setting and non-marking on finished floors, and the ball bearing keeps it rolling smoothly under a loaded deck. The 2 Series swivel is Colson's institutional and light-industrial standard, sized and built for carts that run all day in hospitals, kitchens, and production support.
Ideal applications
- Loaded institutional supply carts on finished floor, multi-shift
- Light-industrial transfer rigs that flatten rubber wheels, sealed concrete
- Food-service and production carts needing non-marking load capacity
Skip the polyurethane 2 Series if the cart only carries light loads and quiet is the priority; the rubber 2 Series swivel rolls softer at a lower load class.
Pairs with: the matching 5-inch 2 Series rigid on the back corners so the front steers and the rear tracks.
Wrong fit? Light, quiet duty, or wash-down? See the rubber 2 Series and Defender D4 stainless casters in the Colson collection.
Also in this family: 5-inch rubber 2 Series, 2-1/2-inch 2 Series, or the full Colson collection.
