MFG PART: D4.06108.559 SS WB29

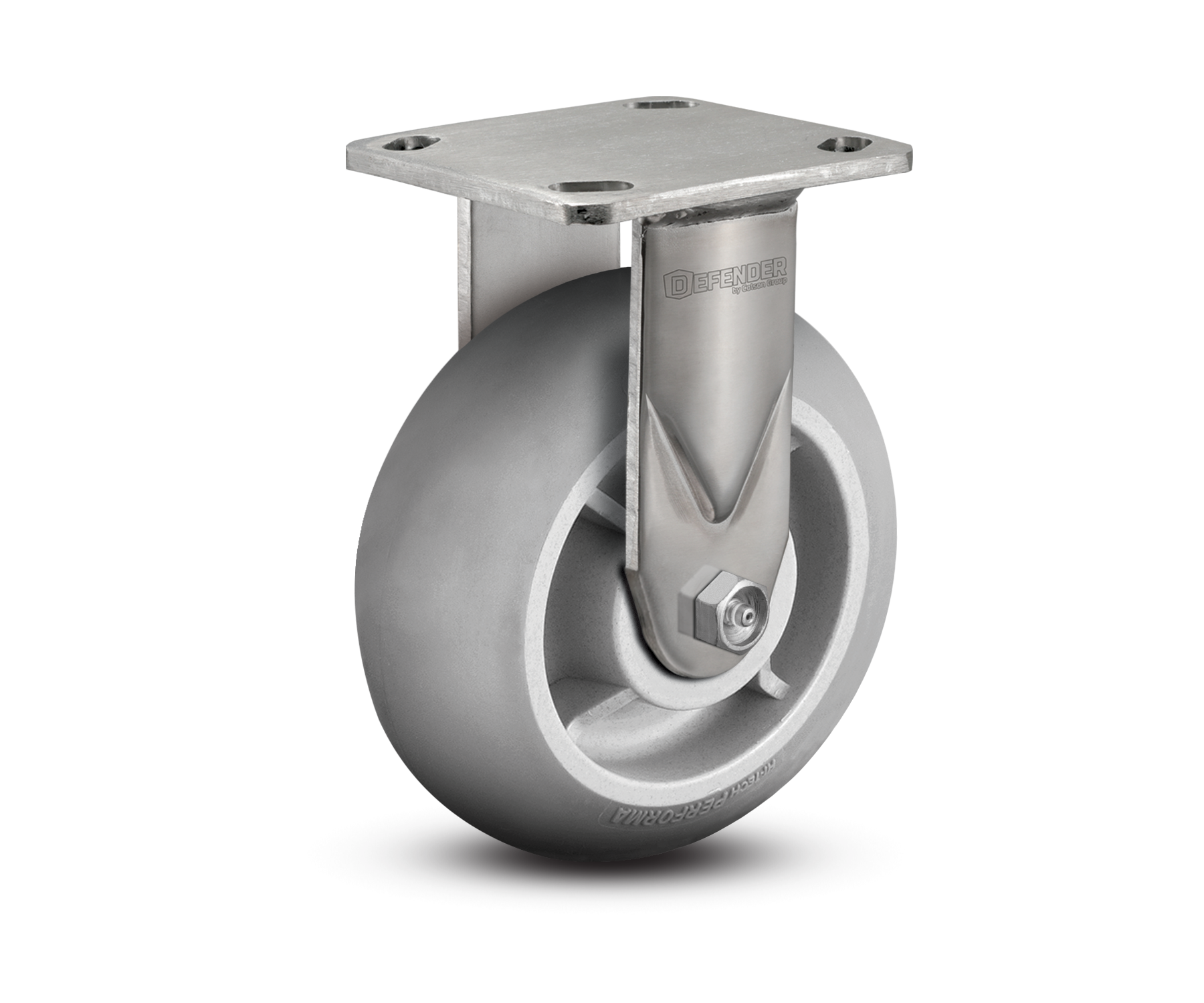

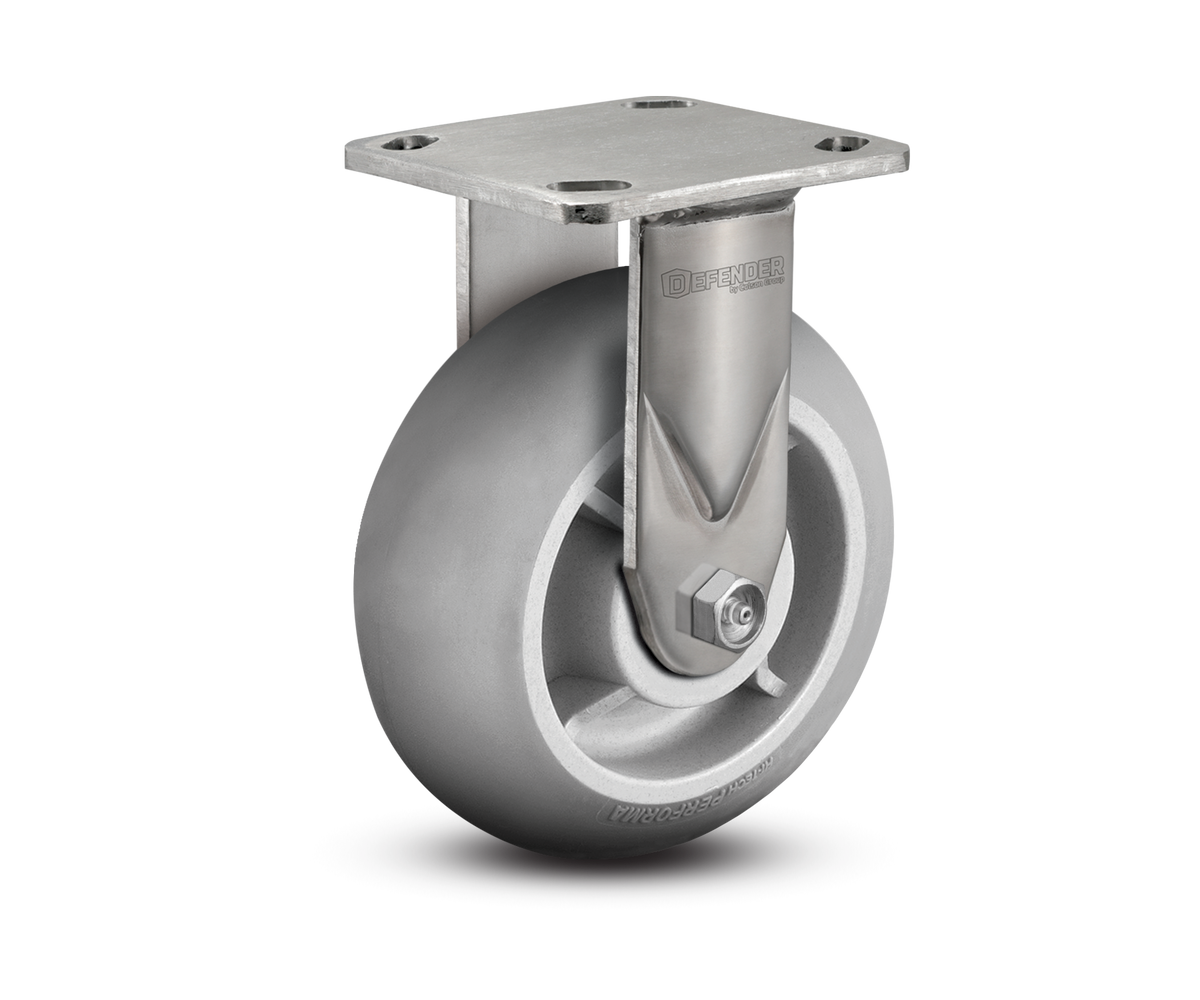

6"X2" Stainless Steel Top Plate Rigid Caster with Rubber (Round) Wheel - D4.06108.559 SS WB29

SKU: 49M1I62G-02
Regular Price $132.64
Rubber Wheel
6" x 2" Wide Wheel
450 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Request a Quote

5% Discount on $500 Orders

FREE Shipping on Orders $250+


Delivery: Estimated delivery time: 2-3 days

Returns: 30 Days Returns

Volume discounts are available for bulk or frequent orders

Available Configurations

SwivelD4.06109.559 SS WB29$175.19
Product Specifications
Availability
Usually Ships Within 5-10 Days
Bearing Type
Roller
Bolt Hole Spacing
2-5/8" x 3-5/8" to 3" x 3"
brand
Colson
Caster Type
Rigid
Core Info
Polyolefin
C C Part
49M1I62G-02
Fastening Type
Top Plate
Finish
Stainless Steel
Load Capacity
450
Mfg Part
D4.06108.559 SS WB29
Mount Height
7-1/2
series
Defender D4 Series Stainless Steel Casters
Swivel Radius
0
Temperature Max
180
Temperature Minimum
-45
Tread Width
2"
Wheel Diameter
6"
Wheel Durometer
65(±5) Shore A
Wheel Type
Rubber
wheel type detail
Performa Rubber (Round)
More Information About This Product

About This Caster - D4.06108.559 SS WB29

Reach for this 6-inch Defender D4 rigid when a quiet cart needs an easy-rolling round tread and carries near the top of the soft-rubber range, pushed slowly.

The roller bearing carries the most weight of the three bearings at a slow pace, and it runs a round-tread Performa wheel that rolls quietly and protects finished floors, its round profile keeping rolling resistance low. The taller 6-inch wheel clears door tracks and joints with the least effort, on a stainless steel frame for corrosion. Even with the roller bearing, soft rubber tops out below a hard wheel, so this is for noise-sensitive areas that want a little more load. Rigid means it tracks straight at the rear. It serves from -45 to 180°F.

Ideal applications

  • Quiet 6-inch round-tread carts near the soft-rubber load ceiling
  • Noise-sensitive stainless rigs moving heavier loads slowly
  • Low-resistance round-tread rear corners that track straight

Keep the load within the soft-rubber roller class, confirm the round tread, and check the 7-1/2-inch mount height before ordering.

Pairs with: the 6-inch Performa round precision-ball rigid D4.06108.555 on faster lead corners.

Wrong fit? Need to drain static? See the 6-inch conductive round-tread roller rigid D4.06108.559 COND in the Colson collection.

Also in this family: the 6-inch Performa flat-grey roller rigid D4.06108.459, or the full Colson collection.
