MFG PART: 2.00002.95

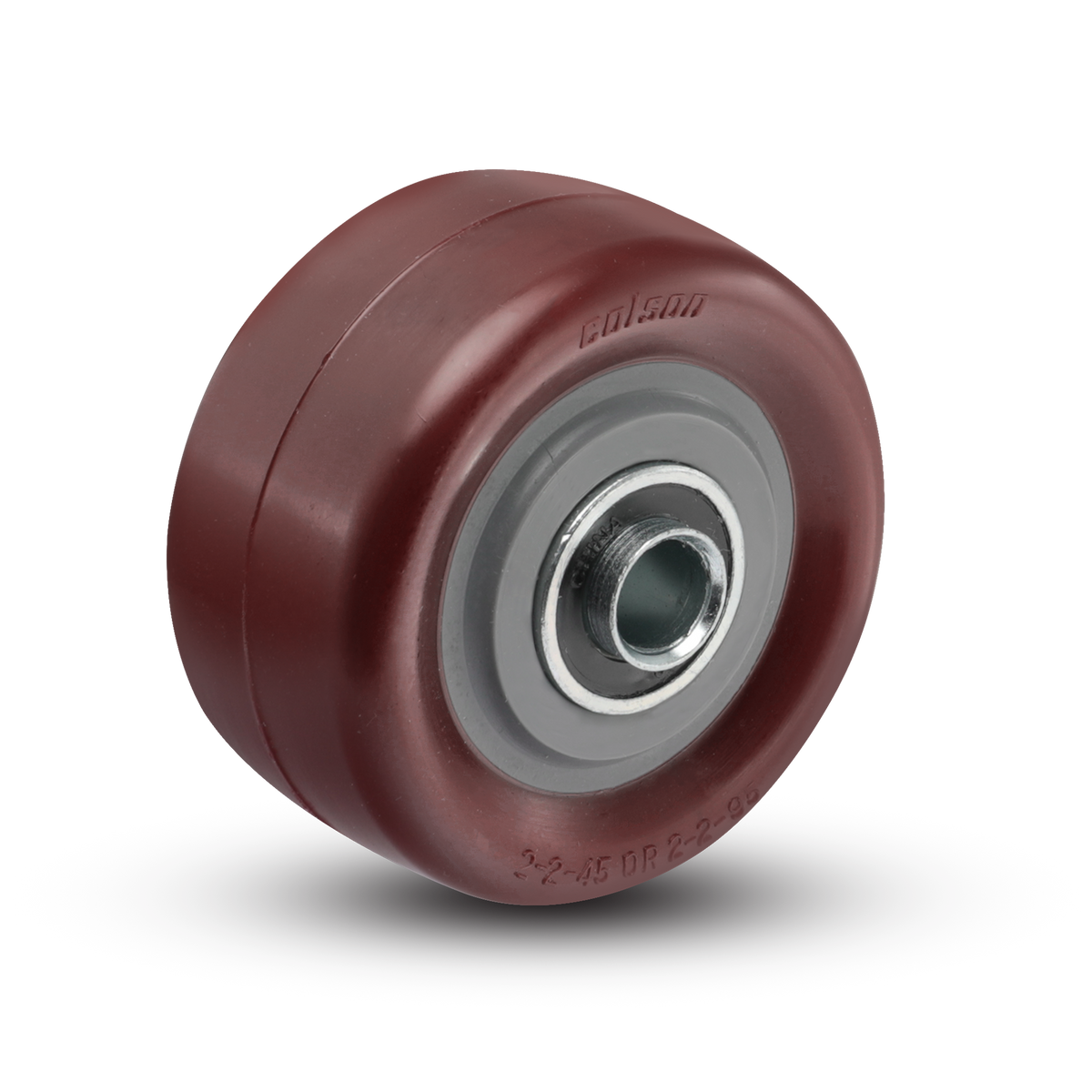

2-1/2" x 1-1/4" Polyurethane HI-TECH Wheel w/ Ball Bearing - 2.00002.95

250 lbper caster
Regular Price $14.70
Polyurethane Wheel
2-1/2" x 1-1/4" Wide Wheel
250 lb Load Capacity
Ball Bearing Bearing
55(+ or-5) Shore D Durometer
Request a Quote

Spend $250 for FREE shipping

$250 Free shipping $500 5% off

Specifications

Dimensions & Mounting

Wheel Diameter2-1/2"
Tread Width1-1/4"
Bearing Bore3/8"
Hub Length1-1/2"

Load & Performance

Load Capacity250 lbs
Bearing TypeBall Bearing
Temperature Range-45°F to +180°F
Wheel Durometer55(+ or-5) Shore D

Materials & Finish

Wheel MaterialPolyurethane
Wheel ColorMaroon
Wheel CorePolypropylene
BrandColson

Delivery: Estimated delivery time: 2-3 days

Returns: 30 Days Returns

Volume discounts are available for bulk or frequent orders

Product Details

About This Wheel - 31JB25-03

Choose this 2-1/2-inch HI-TECH polyurethane wheel for a small cart that carries real weight in tight quarters, the firm maroon tread that holds the load where a soft rubber wheel of the same size sets flat.

Performa rubber flattens under a heavy parked load and carries less; the Colson HI-TECH polyurethane tread bonded to a polypropylene core carries more without setting and stays non-marking and abrasion-resistant, which a loaded tray or instrument cart needs at a low height. The ball bearing rolls that load with an easy one-hand push, and the 2-1/2-inch diameter keeps the deck low and the cart nimble.

Ideal applications

  • Small loaded carts in tight aisles, sealed concrete
  • Tray and instrument carts that flat-spot a rubber wheel
  • Low-deck rigs that need an easy ball-bearing roll

Skip the polyurethane wheel if the cart works near heat over 180°F or wants a softer cushioned ride; a cast iron wheel takes the heat and a Performa rubber 31MB25 cushions the ride softer.

Pairs with: the matching 2-1/2-inch swivel and rigid forks for a small four-corner cart.

Wrong fit? Heat, or a softer wheel? See Colson cast iron and the Performa rubber 31MB25.

Also in this family: the 3-1/2-inch 31JB35, or the full Colson collection.
