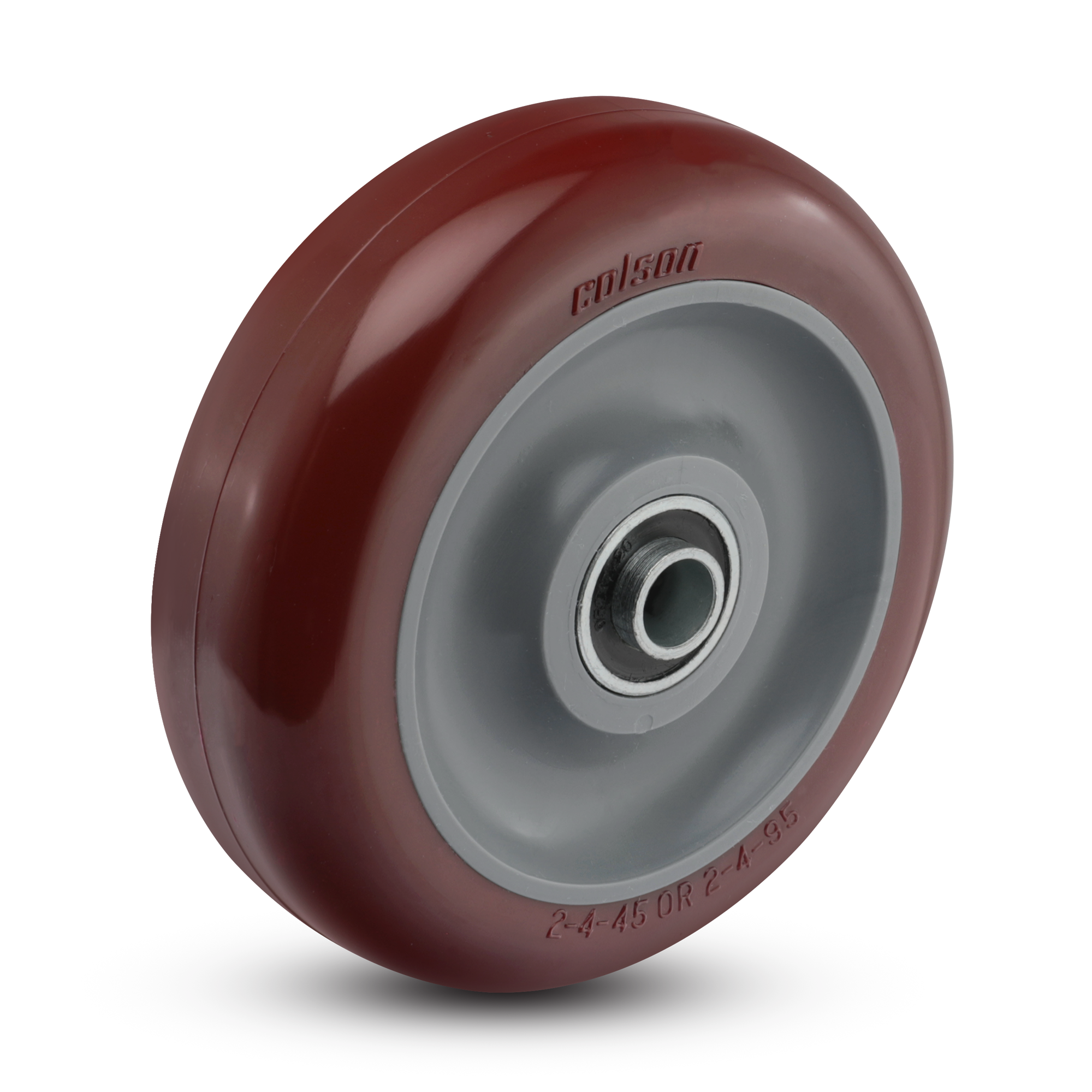

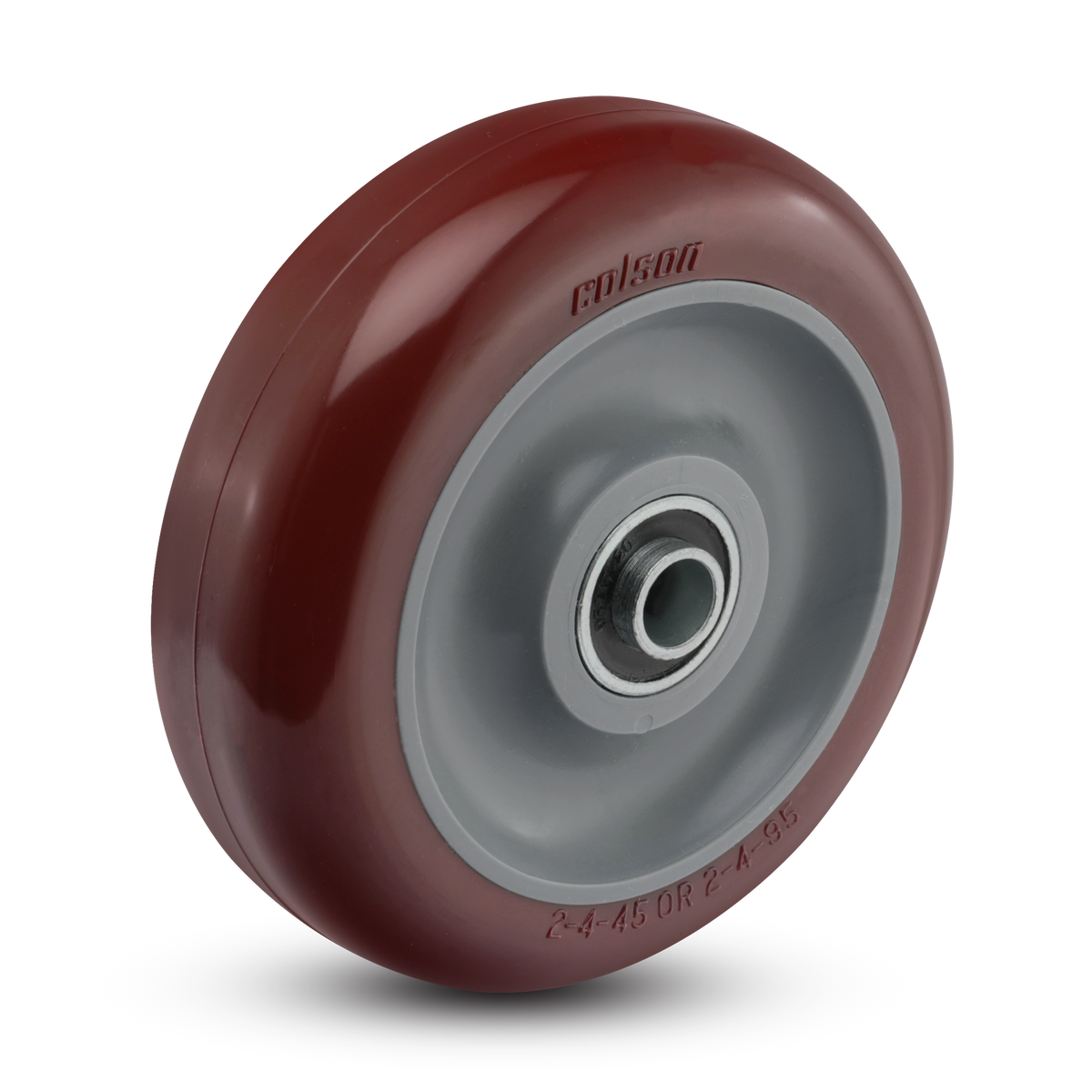

4" x 1-1/4" Polyurethane HI-TECH Wheel w/ Ball Bearing - 2.00004.95
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Bearing Bore | 3/8" |
| Hub Length | 1-1/2" |
Load & Performance
| Load Capacity | 275 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Temperature Range | -45°F to +180°F |
| Wheel Durometer | 55(+ or-5) Shore D |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Maroon |
| Wheel Core | Polypropylene |
| Brand | Colson |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Product Details
About This Wheel - 31JB40-03
Choose this 4-inch HI-TECH polyurethane wheel for a busy cart that gets pushed all day, the firm maroon tread that carries the load while a ball bearing keeps the roll easy under steady use.
Performa rubber flattens under a heavy load and a plain bore drags under constant pushing; the Colson HI-TECH polyurethane tread bonded to a polypropylene core carries more without setting and stays non-marking, and the ball bearing rolls that load with the least effort on a cart worked all shift. The 4-inch diameter clears a cord or sill while keeping the deck low.
Ideal applications
- Busy carts pushed all shift on sealed concrete
- Loaded decks that need an easy ball-bearing roll
- Non-marking 4-inch travel that resists flat-spotting
Skip the polyurethane wheel if the cart works near heat over 180°F or wants a softer ride; a cast iron wheel takes the heat and a Performa rubber 31MB40 cushions the load softer.
Pairs with: the matching 4-inch swivel and rigid forks for a busy four-corner cart.
Wrong fit? Want a greaseless bore, or a softer wheel? See the 4-inch Delrin 31JH40 and the Performa rubber 31MB40.
Also in this family: the 5-inch ball 31JB50, or the full Colson collection.
