Regular Price
$37.61
Metal Wheel
6" x 2" Wide Wheel
1400 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications
Dimensions & Mounting

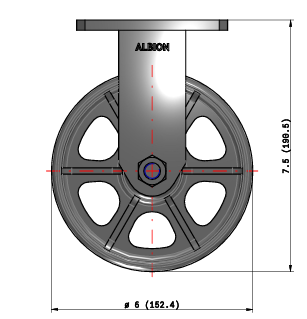

| Wheel Diameter | 6" |
|---|---|

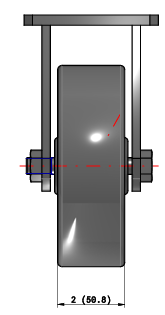

| Tread Width | 2" |
| Mount Height | 7-1/2" |
| Fastening Type | Top Plate |

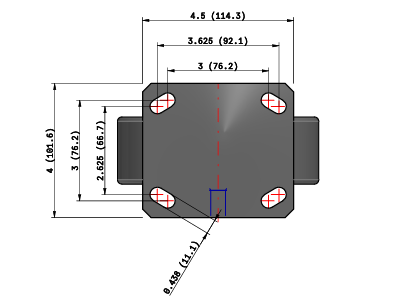

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1400 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA06201R
Specify this 6-inch cast iron rigid for the back corners of a hot, heavy cart that rolls debris on a towed run and has to hold a straight line, where a smaller rigid jams on chips and a swivel wanders under the pull.
The 6-inch diameter rolls over scale, spatter, and floor joints that stop a smaller wheel, and the rigid frame tracks dead straight where a swivel would shimmy behind a tow. The grey cast iron wheel carries a hard, heavy load from -100 to 800°F, and Albion's 110 Contender brings its heat-treated, kingpinless build to the rigid corners. The roller bearing rolls the weight at a slow, steady pace.
Ideal applications
- Towed hot carts rolling debris on a straight track, to 800°F
- 6-inch rigid corners clearing scale a small wheel jams on
- Foundry and oven rigs needing big rigid metal wheels
For the steering corners of the same cart, the swivel 110CA06201S pivots and follows.
Pairs with: 110CA06201S swivels on the front corners so the cart steers up front and tracks at the rear.
Wrong fit? Smaller wheel, or a finished-floor tread? See the 5-inch rigid 110CA05201R and the polyurethane 110AX06228R.
Also in this family: the 4-inch rigid 110CA04201R, or the full kingpinless caster collection.
3D CAD Model
