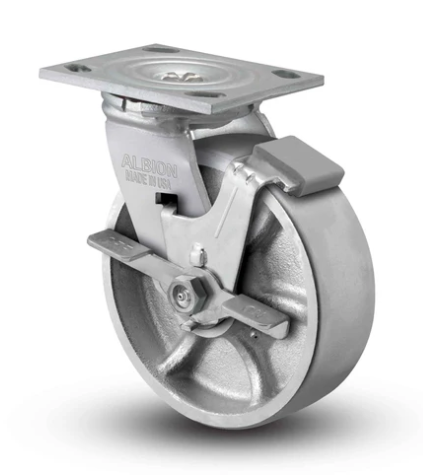

About This Caster - 16CA08201SFBA
Specify this 8-inch 16 Series swivel for the biggest hot-service cart that must hold at a kiln or unload station, the cast iron caster whose tall wheel steers through heat to 800°F and whose face brake clamps the heaviest load still.
Rubber gives by 180°F and phenolic chars past 250°F; the 16 Series cast iron wheel carries the highest load and steers through radiant heat to 800°F, and the face brake presses a shoe against the wheel face to hold the cart at a kiln or unload station. The roller bearing carries the load at a walk, the 8-inch diameter rolls over scale and broken concrete, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Biggest hot-service carts held at a kiln or unload station
- Braked heat service to 800°F on the tallest wheel
- Stopping the heaviest load over rough hot floor
Skip the cast iron wheel if the floor is finished or noise matters; it marks the floor and runs loud, so a polyurethane 16EG08201SFBA face brake rolls non-marking and quiet under load.
Pairs with: the 16CA08201R rigid on the back corners.
Wrong fit? Want no brake, or a non-marking tread? See the plain 16CA08201S swivel and the polyurethane 16EG08201SFBA.
Also in this family: the 6-inch 16CA06201SFBA, or the full Albion caster collection.
