About This Caster - 16EG05201SFBA
Specify this 5-inch 16 Series swivel for a heavier clean-floor cart that has to hold at a stop, the blue polyurethane caster that carries more than rubber and whose face brake stops it without scuffing the floor.

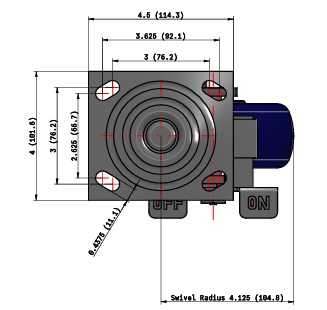

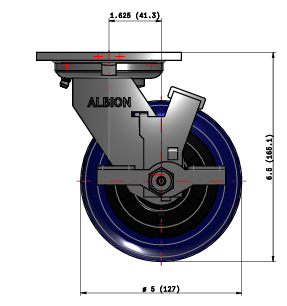

Mold-on rubber sets flat under a heavy parked load; the 16 Series EG polyurethane tread on a polypropylene core carries a higher load without flat-spotting and stays non-marking, and the face brake presses a shoe to the wheel to hold the cart at a station. The roller bearing carries the load at a walk, the 5-inch diameter clears a thicker seam, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Heavier clean-floor carts that hold at a stop
- Braked loads that flat-spot a rubber tread
- Mark-free stops in clean manufacturing or lab areas
Skip the polyurethane wheel if the floor runs near heat over 180°F or carries constant point loads; a cast iron 16CA05201SFBA takes the heat where polyurethane gives.
Pairs with: the 16EG05201R rigid on the back corners.
Wrong fit? Want no brake, or more heat? See the plain 16EG05201S swivel and the cast iron 16CA05201SFBA.
Also in this family: the 6-inch 16EG06201SFBA, or the full Albion caster collection.
