About This Caster - 16EG05201R
Set this 5-inch 16 Series rigid on the back corners of a heavier cart that runs a clean floor, the blue polyurethane caster that carries more than rubber and tracks straight without scuffing the surface.

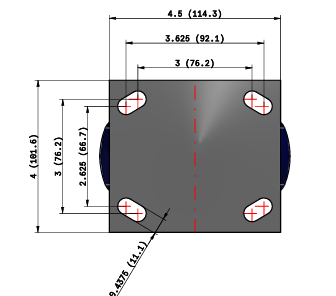

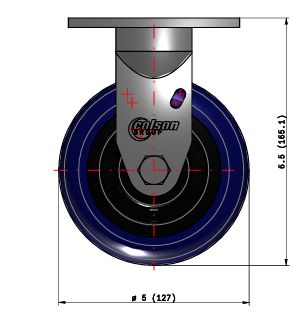

Mold-on rubber sets flat under a heavy load and carries less; the 16 Series EG polyurethane tread on a polypropylene core carries a higher load without flat-spotting and stays non-marking and quiet, while the rigid fork holds the cart on a straight line behind front swivels. The roller bearing carries the load at a walk, the 5-inch diameter clears a thicker seam than a 4-inch, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Back corners of heavier carts on clean floors
- Loads that flat-spot a rubber tread, sealed concrete
- Straight tracking without scuffing the surface
Skip the polyurethane wheel if the floor runs near heat over 180°F or carries constant point loads; a cast iron 16CA05201R takes the heat where polyurethane gives.
Pairs with: the 16EG05201S swivel up front for a steer-and-track cart.
Wrong fit? Need a swivel, or more heat? See the 16EG05201S swivel and the cast iron 16CA05201R.
Also in this family: the 6-inch 16EG06201R, or the full Albion caster collection.
