About This Caster - 16TM08201SFBA
Specify this 8-inch 16 Series swivel for the biggest oil-and-heat cart that must hold at a station, the phenolic caster whose tall hard wheel carries the load without flattening and whose face brake clamps it still near the hot process.

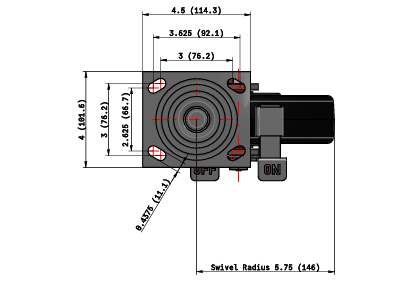

A soft braked wheel flat-spots where a heavy cart parks near a hot line; the 16 Series phenolic wheel is a hard resin that holds its shape and takes oil and heat to 250°F, and the face brake presses a shoe against the wheel face to hold at a station. The roller bearing carries the load at a walk, the 8-inch diameter rolls over expansion joints and broken concrete, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Biggest oil-and-heat carts that hold at a station to 250°F
- Braked tall wheels near a hot process
- Loads that flat-spot a soft braked tread
Skip the phenolic wheel if the floor runs near 800°F or the cart needs a quiet non-marking tread; a cast iron 16 Series wheel takes the heat and a rubber 16XR08228SFBA rolls quiet and non-marking.
Pairs with: the 16TM08201R rigid on the back corners.
Wrong fit? Want no brake, or a quieter tread? See the 16TM08201R rigid and the rubber 16XR08228SFBA.
Also in this family: the 4-inch 16TM04201SFBA, or the full Albion caster collection.
View Datasheet and CAD Model
