Regular Price
$30.76
Phenolic Wheel
8" x 2" Wide Wheel
1250 lb Load Capacity
Roller Bearing
Top Plate Mount
250°F Max Temp
Specifications

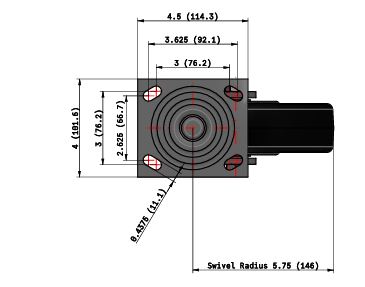

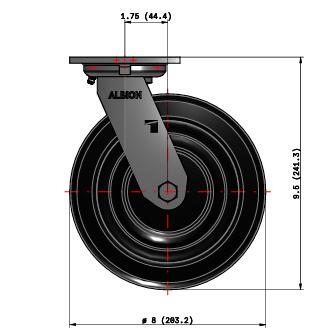

Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 2" |
| Mount Height | 9-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1250 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 250°F |
| Min Temperature | -65°F |
| Wheel Durometer | Rockwell 102 E |
Materials & Finish
| Wheel Material | Phenolic |
|---|---|
| Wheel Color | Black |
| Wheel Core | Phenolic |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16TM08201S
Specify this 8-inch 16 Series swivel for the heaviest phenolic cart that has to cross bad floor, the hard caster whose tall wheel rolls over the breaks while the resin tread holds a high load without flattening.
A soft tall wheel flattens under a standing load and a hard small wheel stalls at every seam; the 16 Series phenolic wheel is a hard resin that carries the high load and takes oil and heat to 250°F, and the 8-inch diameter rolls over expansion joints and broken concrete. The roller bearing carries the medium-heavy load at a walk, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Heaviest phenolic carts crossing bad floor
- High loads over expansion joints and broken concrete
- Oil and heat areas to 250°F on the tallest 16 Series wheel
Skip the phenolic wheel if the floor runs near 800°F or the cart needs a quiet non-marking tread; a cast iron 16 Series wheel takes the heat and a rubber 16XR08228S rolls quiet and non-marking.
Pairs with: the 16TM06201R rigid on the back corners of a phenolic cart.
Wrong fit? Need a quieter tread, or a smaller wheel? See the rubber 16XR08228S and the 5-inch 16TM05201S.
Also in this family: the 16TM06201SFBA face brake, or the full Albion caster collection.
3D CAD Model
