Regular Price
$16.19
Phenolic Wheel
6" x 2" Wide Wheel
1200 lb Load Capacity
Roller Bearing
Top Plate Mount
250°F Max Temp
Specifications
Dimensions & Mounting

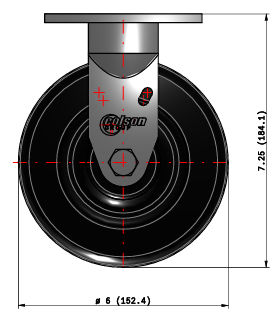

| Wheel Diameter | 6" |
|---|---|

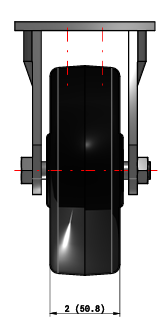

| Tread Width | 2" |
| Mount Height | 7-1/4" |
| Fastening Type | Top Plate |

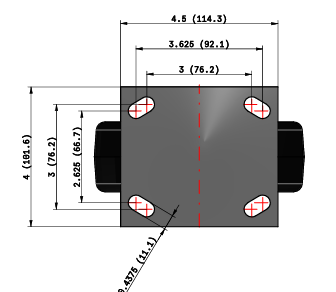

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1200 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 250°F |
| Min Temperature | -65°F |
| Wheel Durometer | Rockwell 102 E |
Materials & Finish
| Wheel Material | Phenolic |
|---|---|
| Wheel Color | Black |
| Wheel Core | Phenolic |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16TM06201R
Set this 6-inch 16 Series rigid on the back corners of a high-load cart that crosses thicker seams, the phenolic caster that holds its shape under a standing load while the taller wheel bridges the threshold.
A soft 6-inch rear flattens where a loaded cart parks and softens around oil; the 16 Series phenolic wheel is a hard resin that carries a high load without setting and takes oil and heat to 250°F, while the taller diameter clears a thicker seam than a 4-inch. The roller bearing carries the load at a walk, the rigid fork holds the line, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Back corners of high-load carts crossing thicker seams
- Oil and heat areas to 250°F that soften a soft tread
- Straight tracking under a standing load on a taller rear
Skip the phenolic wheel if the floor runs near 800°F or the cart needs a quiet non-marking tread; a cast iron 16CA03201R takes the heat and a rubber 16XS06201R rolls quiet and non-marking.
Pairs with: the 16TM06201SFBA phenolic swivel face brake up front for a braked phenolic cart.
Wrong fit? Need a swivel, or a smaller wheel? See the 16TM05201S swivel and the 4-inch 16TM04201R.
Also in this family: the 8-inch 16TM08201S, or the full Albion caster collection.
