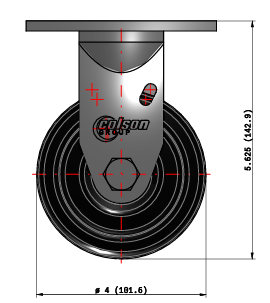

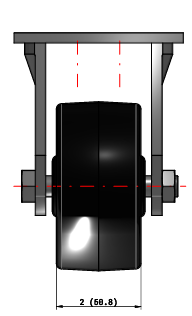

About This Caster - 16TM04201R
Set this 4-inch 16 Series rigid on the back corners of a hard-working cart where a soft tread flattens under a standing load, the phenolic caster that holds its shape and tracks the cart straight while front swivels steer.

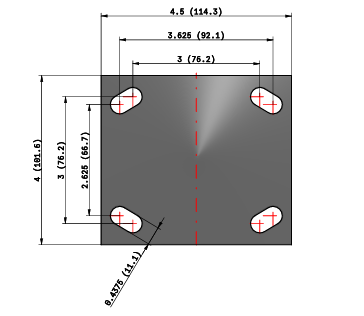

A rubber or poly rear flattens where a loaded cart parks for a shift and softens around oil; the 16 Series phenolic wheel is a hard resin that carries a high load without setting and tolerates oil and heat to 250°F. The roller bearing carries the medium-heavy load at a walk, the rigid fork holds the line, and the 4-inch diameter keeps the rear low. The 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Back corners of carts parked loaded for a shift
- Oil and solvent at the rear that swells a soft tread
- Straight tracking under a high standing load
Skip the phenolic wheel if the floor runs near 800°F or the cart needs a quiet non-marking tread; a cast iron 16CA03201R takes the heat and a rubber 16XS04201R rolls quiet and non-marking.
Pairs with: the 16TM05201S phenolic swivel up front for a steer-and-track phenolic cart.
Wrong fit? Need a swivel, or a bigger wheel? See the 16TM05201S swivel and the 6-inch 16TM06201R.
Also in this family: the 6-inch 16TM06201R, or the full Albion caster collection.
View Datasheet and CAD Model
