6" Top Plate Swivel Caster with Cast Iron Wheel and Face Brake (FBB) - 170CA06201SFBBL

About This Caster - 170CA06201SFBBL

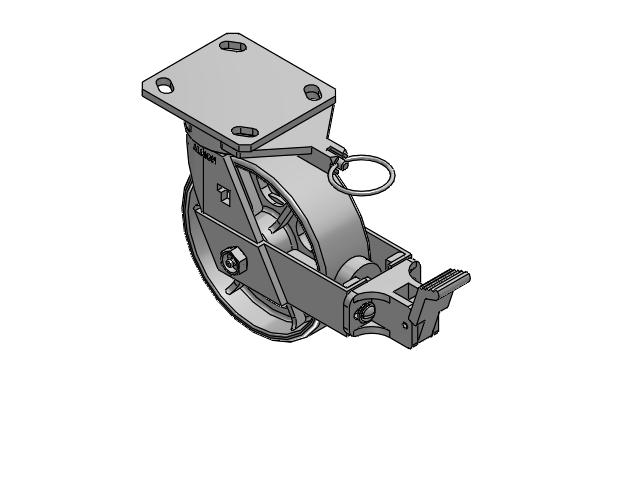

Set this 6-inch Empire 170 cast iron swivel with a combined face brake and swivel lock on a heavier foundry or oven cart corner that has to steer, then lock down completely.

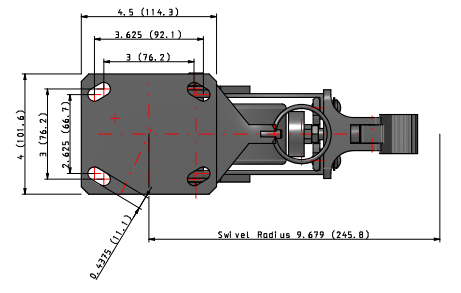

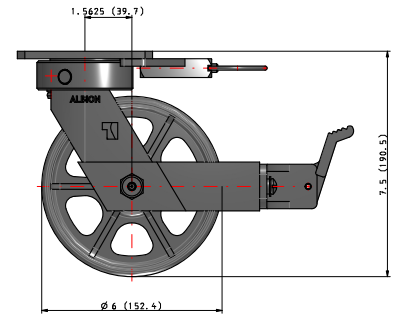

This is the total-lock version: a face brake stops the wheel and a swivel lock holds the swivel, so a heavy loaded cart parks dead still. At 6 inches the larger wheel rolls over seams while steering, and the cast iron wheel holds from -100 to 800°F where rubber and poly cannot go, with the trade that it is hard, noisy, and damages a soft floor. It is built kingpinless with no central kingpin to fail, runs on a roller bearing, bolts on a 4 by 4-1/2-inch top plate at a 7-1/2-inch mount height, and holds from -100 to 800°F.

Ideal applications

• 6-inch cast iron total-lock swivel parking a heavy foundry cart dead still
• Face brake and swivel lock holding a 6-inch iron wheel at extreme heat
• Kingpinless metal swivel rolling over seams then fully locking

If holding the wheel alone is enough, the 170CA06201SFBC stops the wheel without the swivel lock.

Pairs with: plain Empire 170 cast iron swivels on the rolling corners and this total-lock caster on a parking corner.

Wrong fit? Only need a wheel brake or a swivel lock? See the FBC-brake 170CA06201SFBC and the swivel-lock 170CA06201SL.

Also in this family: the 5-inch cast iron total-lock 170CA05201SFBBL, or the full Albion collection.
