MFG PART: 410PY10501R
10"x3" Polyurethane Cast Iron Rigid Caster - 410PY10501R
3000 lbper caster
Regular Price
$229.92
Polyurethane Wheel
10" x 3" Wide Wheel
3000 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting

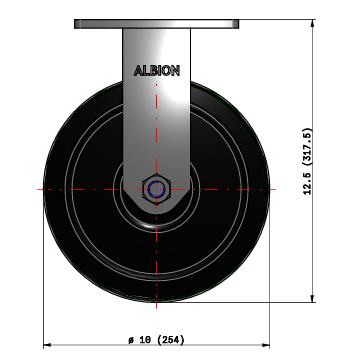

| Wheel Diameter | 10" |
|---|---|

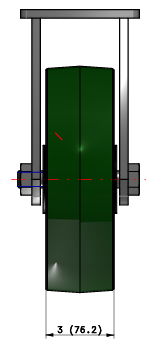

| Tread Width | 3" |
| Mount Height | 12-1/2" |
| Fastening Type | Top Plate |

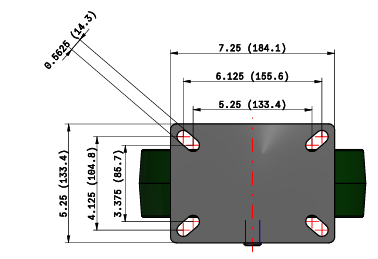

| Fastening Size | 5-1/4" x 7-1/4" |
| Bolt Hole Spacing | 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" |
| Mounting Bolt Size | 1/2" |
Load & Performance
| Load Capacity | 3000 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Green |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 410 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 410PY10501R
Set this 10-inch green polyurethane-on-iron rigid on a fixed corner of the toughest, heaviest manual cart that workers push across rough floors.
At 10 inches the larger wheel clears the biggest obstacles and pulls with the least hand effort, and the 410 carries up to 5,400 pounds across the series. The green polyurethane on a cast iron core pairs that capacity with a non-marking, floor-friendly tread, and the roller bearing is built for the heaviest manual loads. It is built kingpinless with no central kingpin to fail, with a wide 3-inch tread. As a rigid caster it tracks straight on the fixed corners, bolts on a 5-1/4 by 7-1/4-inch top plate, and holds from -40 to 180°F.
Ideal applications
- 10-inch green PU-roller rigid for the toughest heaviest manual hauls
- Roller-bearing green non-marking tread clearing the biggest obstacles
- High-capacity green-PU floor-friendly rigid at a 12-1/2 mount height
For a steering corner instead of a fixed one, the 410PY10501S swivels.
Pairs with: the 10-inch green PY swivel 410PY10501S on the steering corners and this rigid on the fixed corners.
Wrong fit? Need a swivel or a larger wheel? See the 10-inch green PY swivel 410PY10501S and the 12-inch green PY rigid 410PY12501R.
Also in this family: the 8-inch green PY rigid 410PY08501R, or the full Albion collection.
3D CAD Model
