10"x 3" Polyurethane on Cast Iron Swivel Caster w/Face Brake (FBB) - 410PY10501SFBB

About This Caster - 410PY10501SFBB

Set this 10-inch green polyurethane-on-iron swivel with a face brake on the toughest, heaviest manual cart corner that workers push and steer, then park and hold.

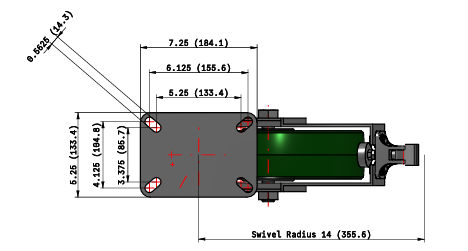

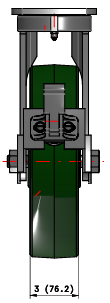

A face brake presses a shoe against the wheel to stop it, holding the heaviest hand-pushed cart on its spot. The 410 carries up to 5,400 pounds across the series, the green polyurethane on a cast iron core pairs high capacity with a non-marking, floor-friendly tread, the roller bearing is built for the heaviest manual loads, and at 10 inches it clears the biggest obstacles while the kingpinless welded raceway takes the shock without a central kingpin to fail. It has a wide 3-inch tread, bolts on a 5-1/4 by 7-1/4-inch top plate, and holds from -40 to 180°F.

Ideal applications

• 10-inch braked green PU-roller swivel parking the toughest manual cart
• Face brake holding the 10-inch green non-marking roller-bearing wheel
• Kingpinless green-PU floor-friendly swivel clearing big obstacles then locking

For a corner that only needs to steer, the plain 410PY10501S drops the brake.

Pairs with: plain 410PY10501S swivels on the rolling corners and this braked caster on a parking corner.

Wrong fit? Only need a roll or a larger wheel? See the plain 410PY10501S and the 12-inch green PY braked 410PY12501SFBB.

Also in this family: the 8-inch green PY braked 410PY08501SFBB, or the full Albion collection.
