MFG PART: B-GST 200K-TML

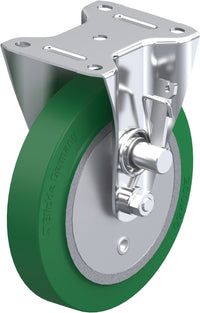

200mm x 50mm Blickle Polyurethane Caster drum brake - B-GST 200K-TML
1500 lbper caster
Regular Price
$759.70
Polyurethane Wheel
1500 lb Load Capacity
Drum Brake
Ball Bearing Bearing
Top Plate Mount
158°F Max Temp
Specifications
Dimensions & Mounting
| Mount Height | 235" |
|---|---|
| Fastening Type | Top Plate |
| Fastening Size | 140 x 110 mm |
| Bolt Hole Spacing | 105 x 75–80 |
Load & Performance
| Load Capacity | 1500 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 158°F |
| Min Temperature | -4°F |
| Wheel Durometer | 75 Shore A |
| Brake Type | Drum Brake |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Green |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Rigid Caster with Brake |
| Brand | Blickle |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - B-GST 200K-TML
Build this 200mm rigid into a heavy towed train that has to cushion a delicate load and hold on a grade with the brake lever on the left.
At 200mm it is the largest wheel here and rolls over the biggest seams and dock plates with the least effort. The tread is Blickle Softhane, a soft polyurethane on a cast iron centre that cushions the load like rubber but carries more, holding from -4 to 158°F, and the green tread marks it as the Softhane compound. The dead-man drum brake holds the cart with the lever on the left to match the operator's reach, the rigid frame tracks straight under a tow, and it mounts on a 140 by 110mm plate.
Ideal applications
- Heaviest towed trains cushioning a delicate load on big wheels
- Left-lever holding brake on a 200mm rigid corner
- Soft green Softhane carrying more than a rubber tread
For the lever on the right side, the B-GST 200K-TMR mirrors this brake.
Pairs with: the right-lever B-GST 200K-TMR on the opposite rail of the same cart.
Wrong fit? Want a firmer Extrathane or a rubber tread? See the Extrathane drum-brake B-GTH 160K-TML and the rubber B-GEV 160K-TML-SG.
Also in this family: the plain Extrathane B-ALTH 160K, or the full Blickle collection.
