MFG PART: 2.04256.95 BRK1

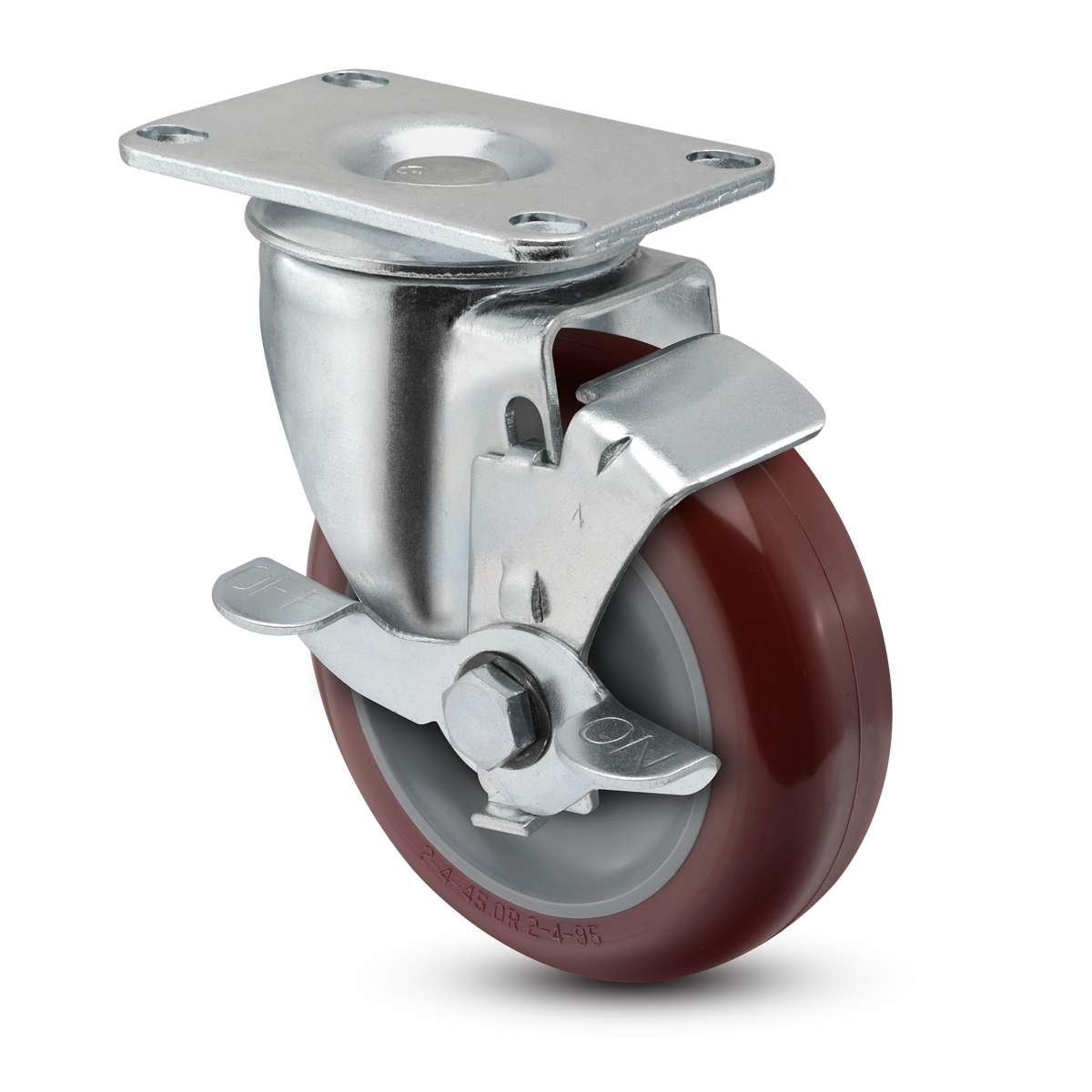

4" Polyurethane 2 Series Swivel Caster - 2.04256.95 BRK1
275 lbper caster
Regular Price
$18.42
Polyurethane Wheel
4" x 1-1/4" Wide Wheel
275 lb Load Capacity
Top Lock Brake
Ball Bearing Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/8" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 3.6875 |
Load & Performance
| Load Capacity | 275 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 45(±5) Shore D |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Maroon |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.04256.95 BRK1
Specify this 4-inch polyurethane swivel with the ball bearing, top lock brake, and top plate for a busy heavier flat-framed cart that parks at a station, the ball bearing that rolls the load easy and the tough HI-TECH Maroon tread that takes the duty.
The ball bearing carries a heavier load and rolls it with less push than a Delrin bore, so a busy cart starts with less effort, the HI-TECH polyurethane tread resists flat-spotting and stays non-marking, the top lock brake stops the wheel so the cart holds at a station, and the plate bolts to a flat frame. Confirm your bolt pattern matches the 3-5/8 by 2-1/2 inch plate before you order. It is the tough easy-rolling braked big-wheel polyurethane swivel for a busy flat-framed cart.
Ideal applications
- Busy heavier flat-framed cart that parks at a station
- Loaded cart that rolls easy and locks at a stop
- Non-marking tough wheel on a busy shop route
Want the swivel pinned too, or a Delrin bearing? A total-lock or the Delrin version fits a different need.
Pairs with: the polyurethane ball rigid 31JB40G-03 on the trailing corners.
Wrong fit? Need a full lock or a wider plate? See the total-lock polyurethane ball plate swivel 31JB40V05-03 and the oversized-plate polyurethane ball swivel 32JB40V-03.
Also in this family: the top-lock polyurethane Delrin plate swivel 31JH40V02-03, or the 2 Series caster collection.
