MFG PART: 2.04256.95 BRK5

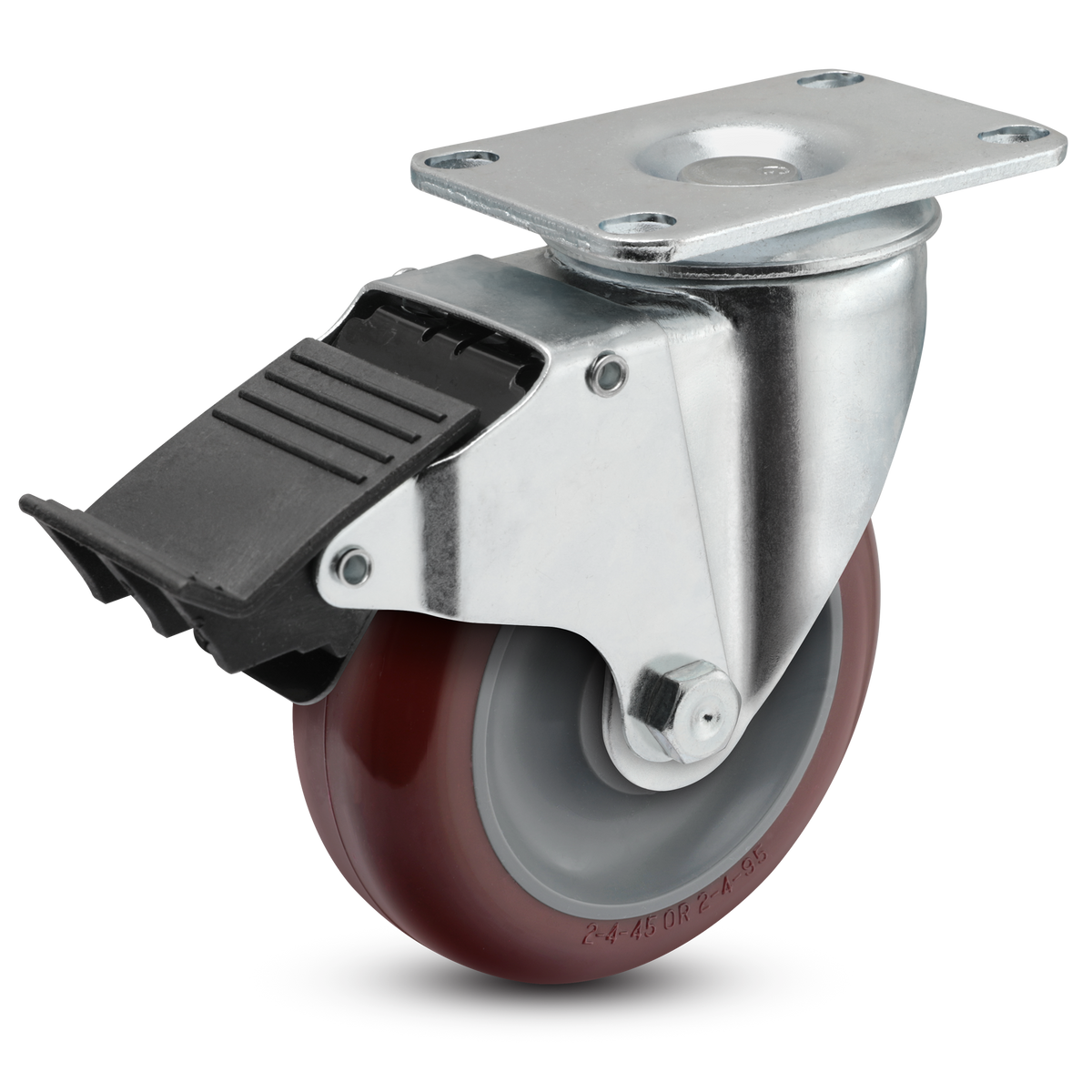

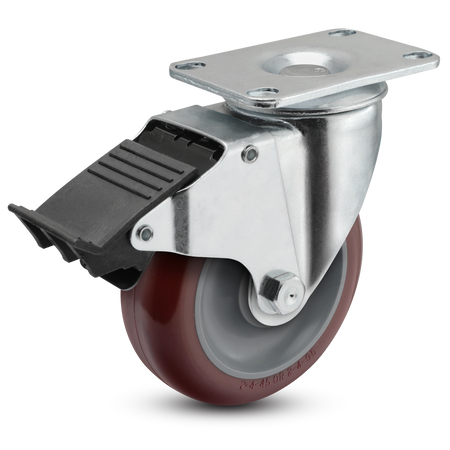

4" Polyurethane 2 Series Swivel Caster - 2.04256.95 BRK5
275 lbper caster
Regular Price
$22.39
Polyurethane Wheel
4" x 1-1/4" Wide Wheel
275 lb Load Capacity
Total Lock Brake
Ball Bearing Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/8" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 4.7500 |
Load & Performance
| Load Capacity | 275 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 45(±5) Shore D |
| Brake Type | Total Lock Brake |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Maroon |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Product Details
About This Caster - 2.04256.95 BRK5
Specify this 4-inch polyurethane swivel with the ball bearing, total lock brake, and top plate for a busy heavier flat-framed cart that must park dead still, the ball bearing that rolls the load easy and the total lock that pins both the wheel and the swivel.
The ball bearing rolls a loaded cart easy while you move it, the total lock pins the wheel and the swivel so the cart neither rolls nor turns once parked, the HI-TECH polyurethane tread resists flat-spotting and stays non-marking, and the plate bolts to a flat frame. Confirm your bolt pattern matches the 3-5/8 by 2-1/2 inch plate before you order. It is the tough easy-rolling fully-locking big-wheel polyurethane swivel for a busy flat-framed cart that must hold its spot.
Ideal applications
- Busy heavier flat-framed cart that parks dead still
- Loaded cart that rolls easy but locks wheel and swivel
- Non-marking tough wheel that holds at a stop
Only need the wheel stopped, or a Delrin bearing? A top-lock brake or the Delrin total-lock version suits a different cart.
Pairs with: the top-lock polyurethane ball plate swivel 31JB40V02-03 on a matched set.
Wrong fit? Want a top lock or a wider plate? See the top-lock polyurethane ball plate swivel 31JB40V02-03 and the wide-plate polyurethane ball total-lock swivel 33JB40V05-03.
Also in this family: the total-lock polyurethane Delrin plate swivel 31JH40V05-03, or the 2 Series caster collection.
