MFG PART: D4.06109.839 SS WB29

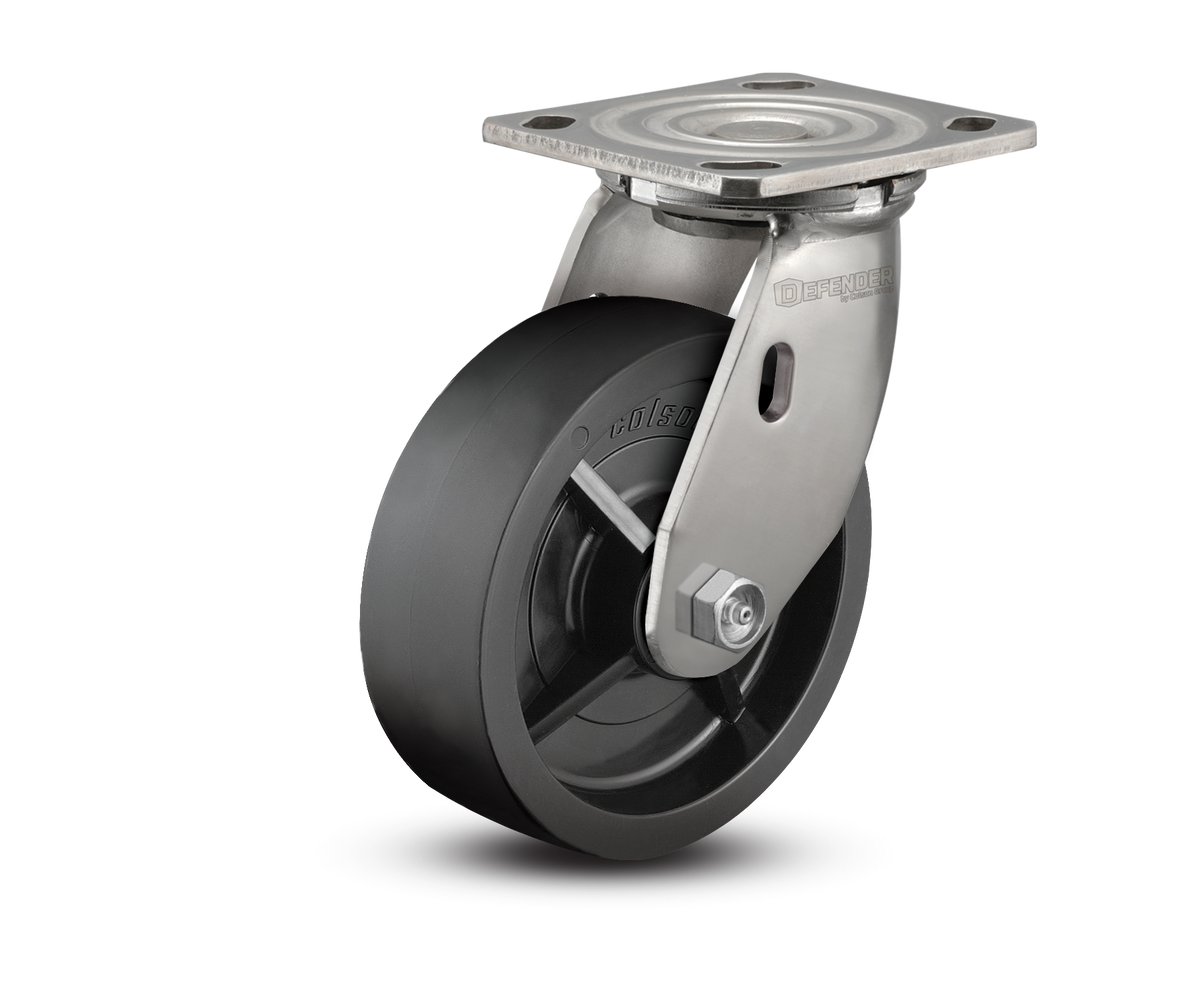

6"X2" Stainless Steel Top Plate Swivel Caster with Polyolefin Wheel - D4.06109.839 SS WB29
700 lbper caster
Regular Price
$207.12
Polyolefin Wheel
6" x 2" Wide Wheel
700 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |
| Mount Height | 7-1/2" |
| Fastening Type | Top Plate |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" to 3" x 3" |
| Swivel Radius | 4.875 |
Load & Performance
| Load Capacity | 700 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Core | Polyolefin |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Colson Defender D4 Series Stainless Steel Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - D4.06109.839 SS WB29
Reach for this 6-inch Defender D4 swivel when a budget cart carries heavier loads, steers, clears thresholds, and is pushed slowly.
The swivel head steers the front of the cart, with a 4.875-inch swivel radius to allow, while the roller bearing gives that swivel the highest capacity of the three bearings at a slow, controlled pace. The economical polyolefin wheel resists chemicals and moisture without absorbing water and wipes clean. The taller 6-inch wheel clears door tracks and joints with the least effort, on a stainless steel frame for corrosion. Polyolefin is a value tread that tops out below a poly-on-core wheel and, being hard, can mark a soft floor. It serves from -45 to 180°F.
Ideal applications
- Budget 6-inch carts steering under heavier loads over thresholds
- Sanitary stainless rigs in corrosive, sprayed-down bays
- Maneuverable front corners under slower, heavier travel
Confirm the roller-bearing and polyolefin load classes, allow for the 4.875-inch swivel radius, before ordering.
Pairs with: the 6-inch polyolefin precision-ball swivel D4.06109.835 on faster lead corners.
Wrong fit? Need a floor-friendly higher-load wheel? See the 6-inch HI-TECH polyurethane roller swivel D4.06109.929 in the Colson collection.
Also in this family: the 6-inch HD glass-filled nylon roller swivel D4.06109.839 DT, or the full Colson collection.
