MFG PART: D4.06108.839 SS WB29

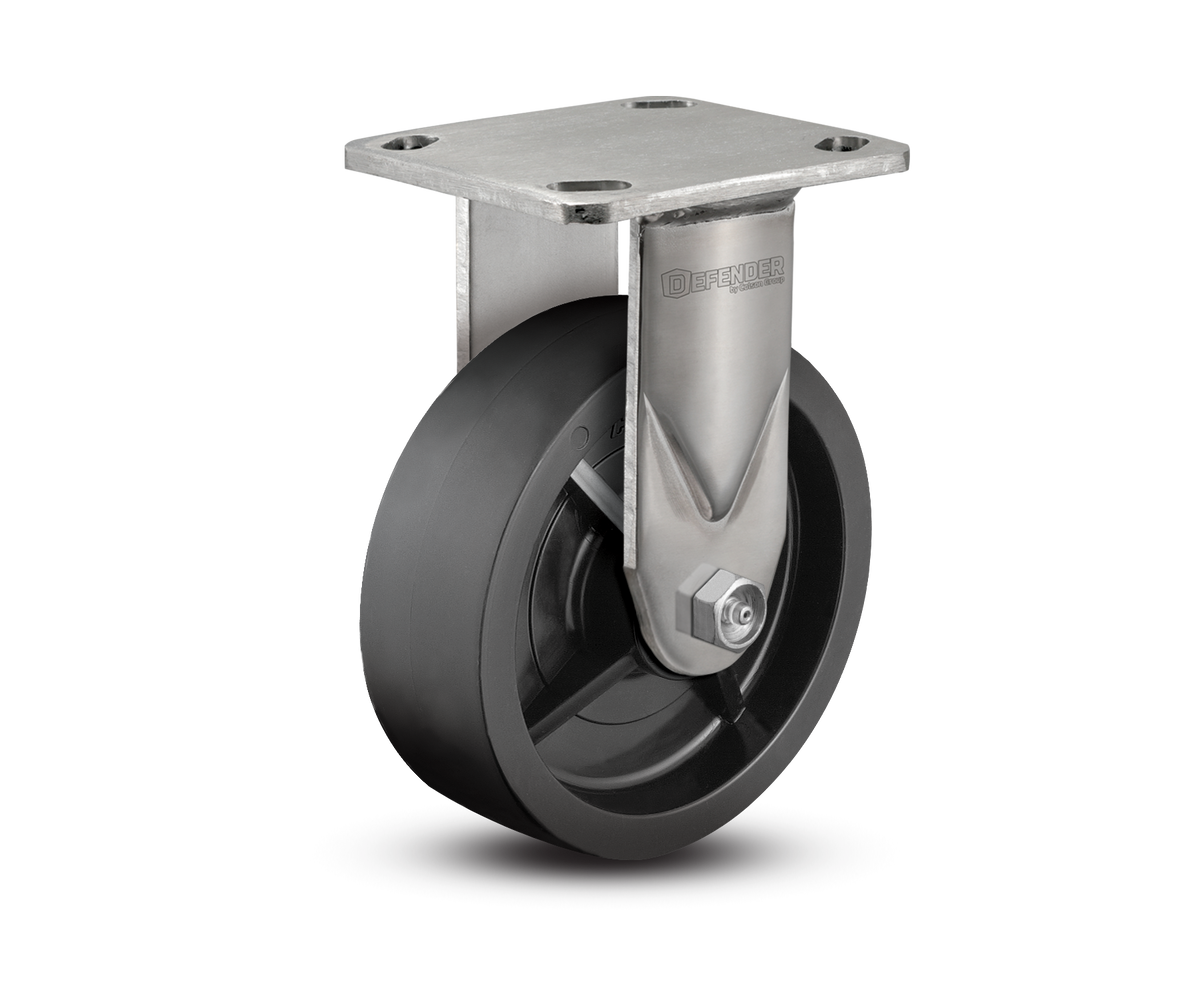

6"X2" Stainless Steel Top Plate Rigid Caster with Polyolefin Wheel - D4.06108.839 SS WB29

SKU: 49GI62G-02
Regular Price $152.66
Polyolefin Wheel
6" x 2" Wide Wheel
700 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Request a Quote

5% Discount on $500 Orders

FREE Shipping on Orders $250+


Delivery: Estimated delivery time: 2-3 days

Returns: 30 Days Returns

Volume discounts are available for bulk or frequent orders

Available Configurations

SwivelD4.06109.839 SS WB29$207.12
Swivel Caster with Brake · Top Lock BrakeD4.06109.839 DTBRK7 SS WB29$256.28
Product Specifications
Availability
Usually Ships Within 5-10 Days
Bearing Type
Roller
Bolt Hole Spacing
2-5/8" x 3-5/8" to 3" x 3"
brand
Colson
Caster Type
Rigid
Core Info
Polyolefin
C C Part
49GI62G-02
Fastening Type
Top Plate
Finish
Stainless Steel
Load Capacity
700
Mfg Part
D4.06108.839 SS WB29
Mount Height
7-1/2
series
Defender D4 Series Stainless Steel Casters
Swivel Radius
0
Temperature Max
180
Temperature Minimum
-45
Tread Width
2"
Wheel Diameter
6"
Wheel Durometer
70(±5) Shore D
Wheel Type
Polyolefin
wheel type detail
Polyolefin
More Information About This Product

About This Caster - D4.06108.839 SS WB29

Go with this 6-inch Defender D4 rigid when a budget cart carries heavier loads, clears thresholds, and is pushed slowly.

The taller 6-inch wheel rolls over door tracks and joints with the least effort, the roller bearing carries the most weight of the three bearings at a slow pace, and the economical polyolefin tread resists chemicals and moisture without absorbing water. The stainless steel frame handles corrosive, sprayed-down bays. Polyolefin is a value tread that tops out below a poly-on-core wheel and, being hard, gives no cushioning and can mark a soft floor. Rigid means it tracks straight at the rear. It serves from -45 to 180°F, the cost-minded choice when loads run heavier but slow and the floor is uneven.

Ideal applications

  • Cost-sensitive 6-inch carts carrying heavier loads over thresholds
  • Stainless 6-inch sanitary rigs in corrosive, sprayed-down bays
  • Straight-tracking rear corners on uneven floors under slow heavy loads

Confirm the roller-bearing load class, that the floor suits a hard wheel, and the 7-1/2-inch mount height before ordering.

Pairs with: the 6-inch polyolefin precision-ball rigid D4.06108.835 on faster lead corners.

Wrong fit? Lighter, grease-free duty? See the 6-inch polyolefin Delrin rigid D4.06108.831 in the Colson collection.

Also in this family: the 5-inch polyolefin roller rigid D4.05108.839, or the full Colson collection.
