MFG PART: D4.08108.839 HTBLK SS WB29

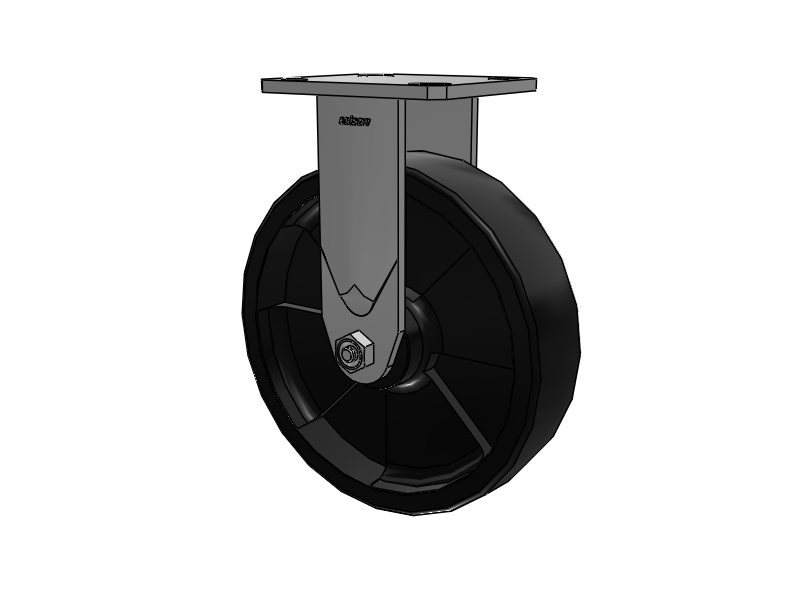

8"X2" Stainless Steel Top Plate Rigid Caster with Hi -Temp Glass Filled Nylon Wheel - D4.08108.839 HTBLK SS WB29

SKU: 49R1I82G-02
Regular Price $174.80
Nylon Wheel
8" x 2" Wide Wheel
1250 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Request a Quote

5% Discount on $500 Orders

FREE Shipping on Orders $250+


Delivery: Estimated delivery time: 2-3 days

Returns: 30 Days Returns

Volume discounts are available for bulk or frequent orders

Available Configurations

SwivelD4.08109.839 HTBLK SS WB29$217.42
Product Specifications
Availability
Usually Ships Within 5-10 Days
Bearing Type
Roller
Bolt Hole Spacing
2-5/8" x 3-5/8" to 3" x 3"
brand
Colson
Caster Type
Rigid
Core Info
Nylon
C C Part
49R1I82G-02
Fastening Type
Top Plate
Finish
Stainless Steel
Load Capacity
1250
Mfg Part
D4.08108.839 HTBLK SS WB29
Mount Height
9-1/2
series
Defender D4 Series Stainless Steel Casters
Swivel Radius
0
Temperature Max
180
Temperature Minimum
-20
Tread Width
2"
Wheel Color
Brown
Wheel Diameter
8"
Wheel Durometer
75(±5) Shore D
Wheel Type
Nylon
wheel type detail
Nylon Glass Filled
More Information About This Product

About This Caster - D4.08108.839 HTBLK SS WB29

Go with this 8-inch Defender D4 rigid when a warm chemical-area cart carries maximum weight, clears the biggest obstacles, and moves slowly.

The roller bearing carries the most weight of the three bearings at a slow pace, and the hi-temp glass-filled nylon wheel is a glass-fiber-reinforced tread built for strength and heat resistance, standing up to chemicals and moisture. The tallest 8-inch wheel bridges the widest cracks and clears big obstacles with the least effort, on a stainless steel frame for corrosion. Glass-filled nylon is hard with no cushioning and can mark a soft floor. Rigid means it tracks straight at the rear. It serves across the listed range from -20 to 180°F.

Ideal applications

  • Maximum-load 8-inch warm chemical-area carts over rough ground
  • Heat-grade nylon under heavy loads where elastomer would soften
  • Rear corners on hard, durable flooring

Verify the temperature rating and wheel color, confirm the roller-bearing load class, and check the 9-1/2-inch mount height before ordering.

Pairs with: the 8-inch hi-temp glass-filled nylon precision-ball rigid D4.08108.835 HTBLK on faster lead corners.

Wrong fit? Need steam-grade sterilization service? See the 8-inch Retort roller rigid D4.08108.839 RW in the Colson collection.

Also in this family: the 8-inch polyolefin roller rigid D4.08108.839, or the full Colson collection.
