MFG PART: 120EG06229S
6"x2" Polyurethane Swivel Caster Kingpinless Stainless Steel - 120EG06229S
1100 lbper caster
Regular Price
$361.26
Polyurethane Wheel
6" x 2" Wide Wheel
1100 lb Load Capacity
Precision Ball Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |

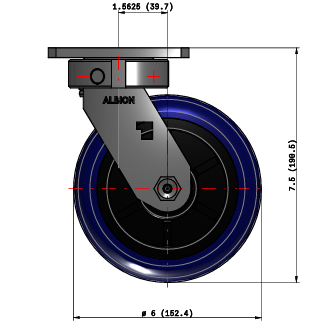

| Mount Height | 7-1/2" |
| Fastening Type | Top Plate |

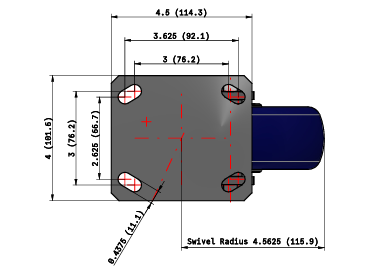

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1100 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Albion 120 Contender Kingpinless Stainless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 120EG06229S
Set this 6-inch polyurethane swivel on a steering corner of a heavy washdown cart that travels long sanitary runs.
The larger 6-inch wheel rolls easily over drains and seams while staying maneuverable, and the kingpinless swivel section, welded to the legs inside and out, takes the shock a heavy cart drives through a swivel without a kingpin that could work loose over time. The blue polyurethane tread is non-marking and easy-rolling, and the stainless frame resists washdown corrosion. It steers on a precision ball bearing, bolts on a 4 by 4-1/2-inch top plate at a 7-1/2-inch mount height, and holds from -40 to 180°F.
Ideal applications
- 6-inch blue PU swivel steering a heavy washdown cart
- Kingpinless welded swivel rolling over drains under load
- Non-marking precision-ball swivel at a 7-1/2 mount height
For a corner that has to park and stay put, the 120EG06229SFBD adds a face brake.
Pairs with: the 6-inch rigid 120EG06229R on the fixed corners and this swivel on the steering corners.
Wrong fit? Need a brake or a larger wheel? See the braked 120EG06229SFBD and the 8-inch swivel 120EG08229S-01.
Also in this family: the 6-inch nylon swivel 120NX06201S, or the full Albion collection.
3D CAD Model
