MFG PART: 120EG08229S-01FBD
8"x2" Polyurethane Swivel Caster Kingpinless Stainless Steel w/Face Brake - 120EG08229S-01FBD
1200 lbper caster
Regular Price
$482.43
Polyurethane Wheel
8" x 2" Wide Wheel
1200 lb Load Capacity
Face Brake
Precision Ball Bearing
Top Plate Mount
Specifications
Dimensions & Mounting

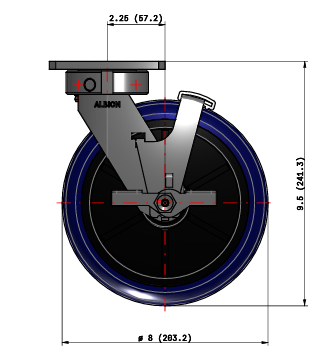

| Wheel Diameter | 8" |
|---|---|

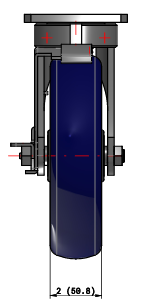

| Tread Width | 2" |
| Mount Height | 9-1/2" |
| Fastening Type | Top Plate |

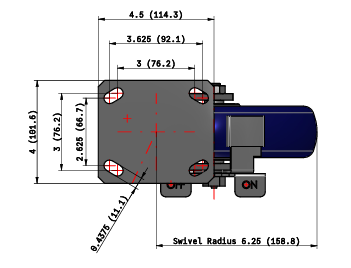

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1200 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Stainless Steel |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 120 Contender Kingpinless Stainless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 120EG08229S-01FBD
Set this 8-inch polyurethane swivel with a face brake on the heaviest washdown cart corner that steers, crosses drains, then parks and holds.
A face brake presses a shoe against the wheel to stop it, so the heaviest sanitary cart holds its spot on a ramp or at a load station. The 8-inch wheel rolls over drains and joints while steering, the kingpinless welded swivel carries the heavy shock without a kingpin to loosen, and the stainless frame resists washdown corrosion. The blue polyurethane tread is non-marking and easy-rolling. It runs on a precision ball bearing, bolts on a 4 by 4-1/2-inch top plate at a 9-1/2-inch mount height, and holds from -40 to 180°F.
Ideal applications
- 8-inch braked blue PU swivel parking the heaviest washdown cart
- Face brake holding the 8-inch wheel on a kingpinless stainless swivel
- Non-marking swivel crossing drains then locking on a ramp
For a corner that only needs to steer, the plain 120EG08229S-01 drops the brake.
Pairs with: plain 120EG08229S-01 swivels on the rolling corners and this braked caster on a parking corner.
Wrong fit? Only need a roll or a smaller braked wheel? See the plain 120EG08229S-01 and the 6-inch braked 120EG06229SFBD.
Also in this family: the 4-inch braked 120EG04229SFBD, or the full Albion collection.
