MFG PART: 120EG08229R-01
8"x2" Polyurethane Rigid Caster Kingpinless Stainless Steel- 120EG08229R-01
1200 lbper caster
Regular Price
$268.98
Polyurethane Wheel
8" x 2" Wide Wheel
1200 lb Load Capacity
Precision Ball Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting

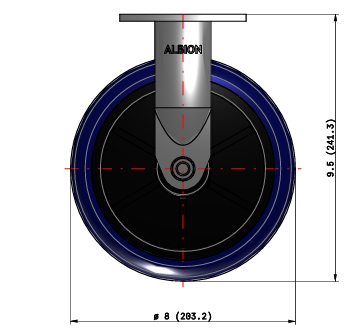

| Wheel Diameter | 8" |
|---|---|

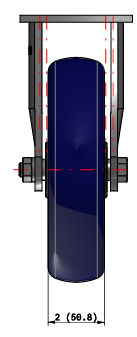

| Tread Width | 2" |
| Mount Height | 9-1/2" |
| Fastening Type | Top Plate |

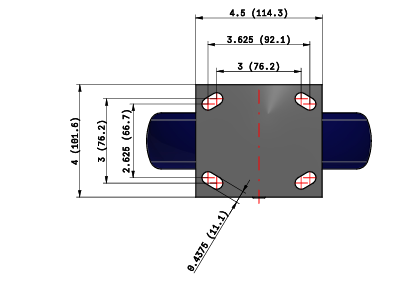

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1200 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Stainless Steel |
| Caster Type | Rigid |
| Brand / Series | Albion 120 Contender Kingpinless Stainless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 120EG08229R-01
Set this 8-inch polyurethane rigid on a fixed corner of the heaviest washdown cart that crosses drains and rough sanitary floors.
At 8 inches, the largest in this polyurethane line, the wheel rolls over floor drains, joints, and thresholds with the least effort on a long haul, and the blue polyurethane tread stays non-marking and easy-rolling while protecting the floor. It is built on the corrosion-resistant 120 Contender stainless frame, and as a rigid caster it tracks straight on the fixed corners to steady the heaviest cart. It runs on a precision ball bearing, bolts on a 4 by 4-1/2-inch top plate at a 9-1/2-inch mount height, and holds from -40 to 180°F.
Ideal applications
- 8-inch blue PU rigid on the heaviest washdown cart corner
- Non-marking tread crossing drains on a long sanitary haul
- Precision-ball rigid at a 9-1/2 mount height on stainless
For a steering corner instead of a fixed one, the 120EG08229S-01 swivels.
Pairs with: the 8-inch swivel 120EG08229S-01 on the steering corners and this rigid on the fixed corners.
Wrong fit? Need a swivel or a smaller wheel? See the 8-inch swivel 120EG08229S-01 and the 6-inch rigid 120EG06229R.
Also in this family: the 8-inch braked 120EG08229S-01FBD, or the full Albion collection.
3D CAD Model
