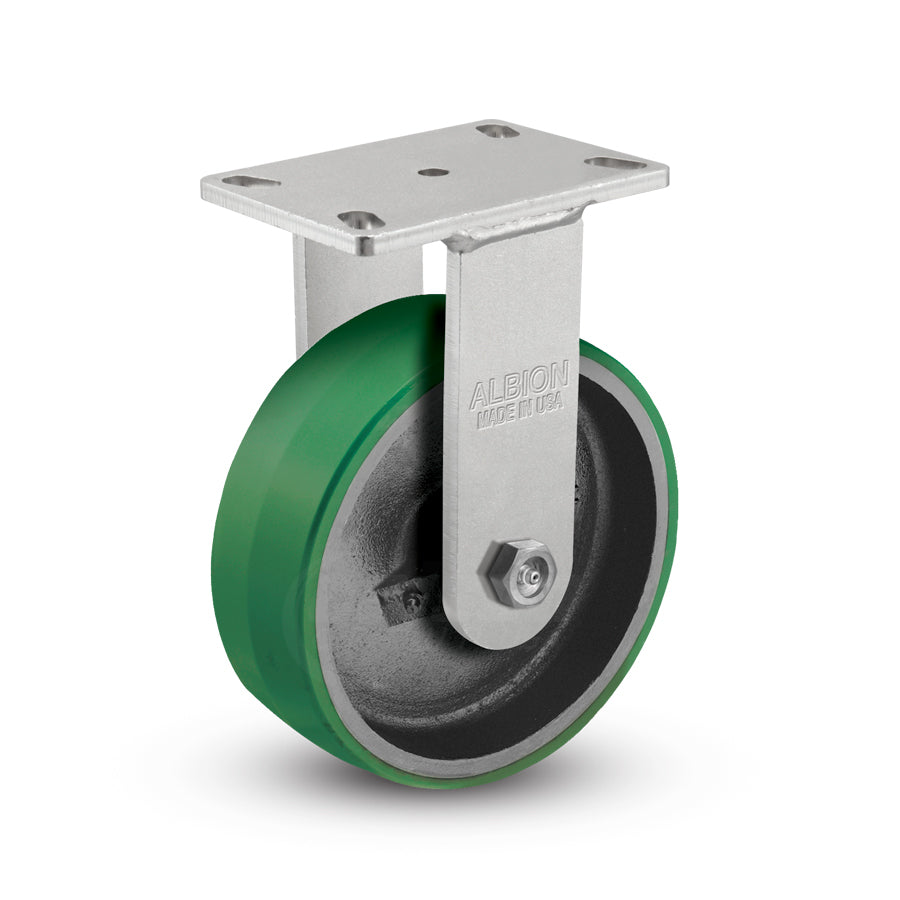

10" Polyurethane Rigid Caster - 310PY10501R

About This Caster - 310PY10501R

Set this 10-inch green polyurethane-on-iron rigid on a fixed corner of the heaviest manual cart that workers push across rough floors.

At 10 inches the larger wheel clears the biggest obstacles and pulls with the least hand effort, and the green polyurethane on a cast iron core pairs high capacity with a non-marking, floor-friendly tread. The roller bearing is built for the heaviest manual loads. It is built on the American-made 310 frame of heat-treated laser-cut steel with fully welded legs and no kingpin to fail, with a wide 3-inch tread. As a rigid caster it tracks straight on the fixed corners, bolts on a 6-1/4 by 4-1/2-inch top plate, and holds from -40 to 180°F.

Ideal applications

• 10-inch green PU-on-iron roller rigid for the heaviest manual hauls
• Roller-bearing non-marking tread clearing the biggest obstacles
• High-capacity green-PU floor-friendly rigid at an 11-1/2 mount height

For a steering corner instead of a fixed one, the 310PY10501S swivels.

Pairs with: the 10-inch green PU swivel 310PY10501S on the steering corners and this rigid on the fixed corners.

Wrong fit? Need a swivel or a larger wheel? See the 10-inch green PU swivel 310PY10501S and the 12-inch green PU rigid 310PY12501R.

Also in this family: the 8-inch green PU rigid 310PY08501R, or the full Albion collection.
