MFG PART: 62CA05201R

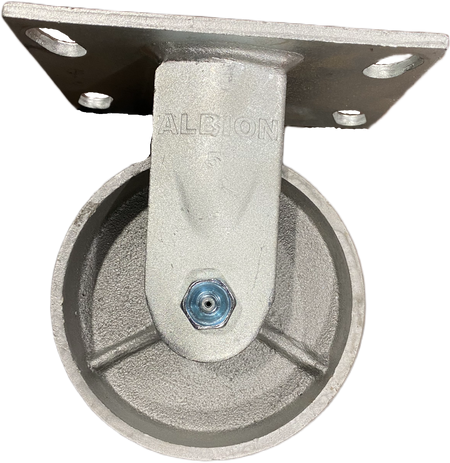

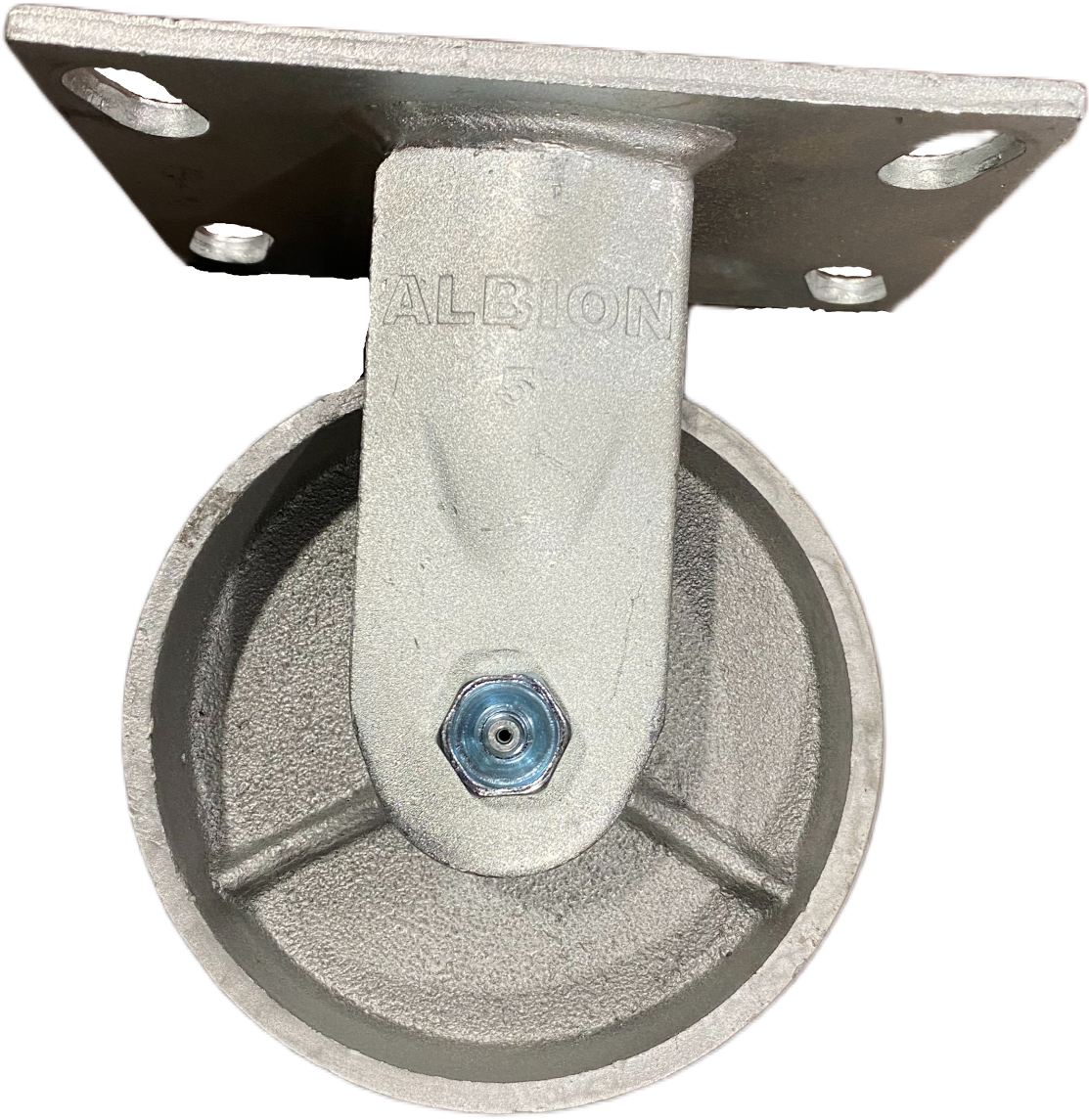

5" x 2" Rigid Caster with Cast Iron Wheel, Albion 62 Series - 62CA05201R
1300 lbper caster
Regular Price
$42.16
Metal Wheel
5" x 2" Wide Wheel
1300 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|
| Tread Width | 2" |
| Mount Height | 6-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 6-1/4" x 4-1/2" |
| Bolt Hole Spacing | 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" |
| Mounting Bolt Size | 1/2" |
Load & Performance
| Load Capacity | 1300 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 62 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 62CA05201R
Set this 5-inch 62 Series rigid on the back corners of a heat-treat or annealing cart, the cast iron caster whose wheel rolls through heat to 800°F where every elastomer melts and phenolic chars.
Rubber gives by 180°F and phenolic chars past 250°F; the 62 Series cast iron wheel carries the highest industrial load and rolls through radiant heat to 800°F, which a heat-treat line needs at the rear. The roller bearing carries the dead weight at a walk, the rigid fork holds the line, and the 5-inch diameter clears a thick hot-shop seam. The 6-1/4 by 4-1/2 top plate bolts to a flat deck. Industrial-duty.
Ideal applications
- Back corners of heat-treat and annealing carts to 800°F
- Heat that melts rubber and chars resin treads
- Highest industrial load on a straight-tracking rear
Skip the cast iron wheel if the floor is finished or noise matters; it marks the floor and runs loud, so a polyurethane 62AX05228R rolls non-marking and a high-impact polymer 62NX04228R takes hits quiet.
Pairs with: a matching 62 Series cast iron swivel up front for a heat-service cart.
Wrong fit? Need a non-marking tread, or a smaller wheel? See the polyurethane 62AX05228R and the 4-inch cast iron 62CA04201R.
Also in this family: the 62 Series collection, or the full Albion caster collection.
