MFG PART: 2.02256.55 MTG59 BRK1

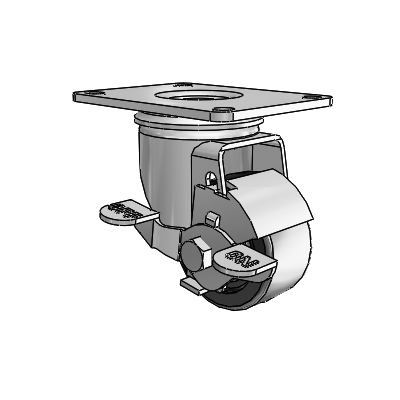

2.5" Polyolefin 2 Series Swivel Caster - 2.02256.55 MTG59 BRK1
200 lbper caster
Regular Price
$18.55
Polyolefin Wheel
2-1/2" x 1-1/4" Wide Wheel
200 lb Load Capacity
Top Lock Brake
Ball Bearing Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-7/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4-1/8" x 3-1/8" |
| Bolt Hole Spacing | 2-3/8" x 3-3/8" to 3-1/2" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 3.8125 |
Load & Performance
| Load Capacity | 200 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.02256.55 MTG59 BRK1
Specify this 2.5-inch polyolefin swivel with the ball bearing and top lock brake on the 4-1/8 by 3-1/8 inch plate for the parking corner of a busy wet-area cart on an oversized frame, the no-rust caster that spreads the load, rolls smooth, and locks the wheel still.
The 4-1/8 by 3-1/8 inch plate bolts to that oversized pattern and spreads the load, the molded polyolefin wheel resists the wash, the ball bearing carries the busy duty, and the top lock brake stops the wheel so the cart holds on a wet floor. At 2.5 inches it keeps a low deck. It is the no-rust braked oversized-plate corner for a busy wet cart.
Ideal applications
- Parking corner of a busy oversized-frame wet cart, 4-1/8 x 3-1/8 plate
- No-rust high-traffic oversized-plate rig locked at a station
- Specific-pattern busy cart that holds still without rusting
Skip the brake on corners that only roll and steer; the plain MTG59 ball polyolefin 32GB25V-03 turns freely at a lower cost.
Pairs with: the plain MTG59 ball polyolefin 32GB25V-03 on the rolling corners.
Wrong fit? No brake, standard plate, or a load tread? See the braked MTG27 ball polyolefin 33GB25V02-03 and the MTG59 Delrin braked polyolefin 32GH25V02-03.
Also in this family: the braked MTG27 ball polyolefin 33GB25V02-03 and braked square MTG35 ball polyolefin 31GB25V02-03, or the 2 Series caster collection.
