3.5" Performa Rubber 2 Series Swivel Caster - 2.03254.445 COND MTG11 BRK5

About This Caster - 2.03254.445 COND MTG11 BRK5

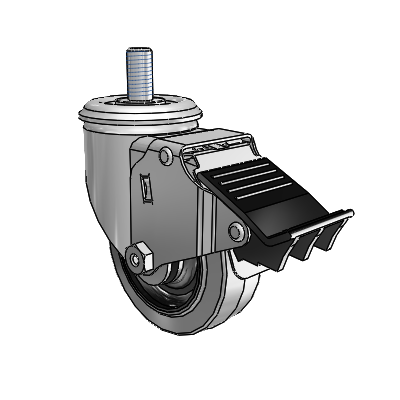

Specify this 3.5-inch conductive Performa rubber swivel with the ball bearing, total lock brake, and 1/2-13 threaded stem where static-sensitive equipment mounts on a half-inch tapped boss and must stay put, the carbon-loaded tread that drains charge to ground and the total lock that pins both the wheel and the swivel.

The conductive rubber gives static a path from the load through the caster to a grounded floor, the 1/2-13 stem threads into a half-inch tapped boss and locks with a jam nut, the ball bearing rolls the equipment easy while you move it, and the total lock pins the wheel and the swivel so it neither rolls nor turns when parked. A conductive caster needs a conductive, grounded floor to work. Confirm your boss is 1/2-13 UNC and your floor is grounded before you order. It is the static-draining fully-locking threaded-stem swivel for sensitive boss-mounted equipment.

Ideal applications

• Static-sensitive equipment on a 1/2-13 tapped boss
• Bench or rack that must drain charge and stay put
• Grounded conductive floor in an electronics or clean area

Floor is not conductive, or you need no brake? A standard threaded-stem swivel does the mounting job without the static path.

Pairs with: the non-conductive 1/2-13 ball total-lock swivel 31MB35X4105-03 where static is not a concern.

Wrong fit? Need a plain swivel or a top-plate conductive caster? See the 1/2-13 ball threaded swivel 31MB35X41-03 and the conductive rubber rigid 31MB35GT-03.

Also in this family: the 3/4-10 ball total-lock threaded swivel 31MB35XH3405-03, or the 2 Series caster collection.
