MFG PART: 2.04256.445

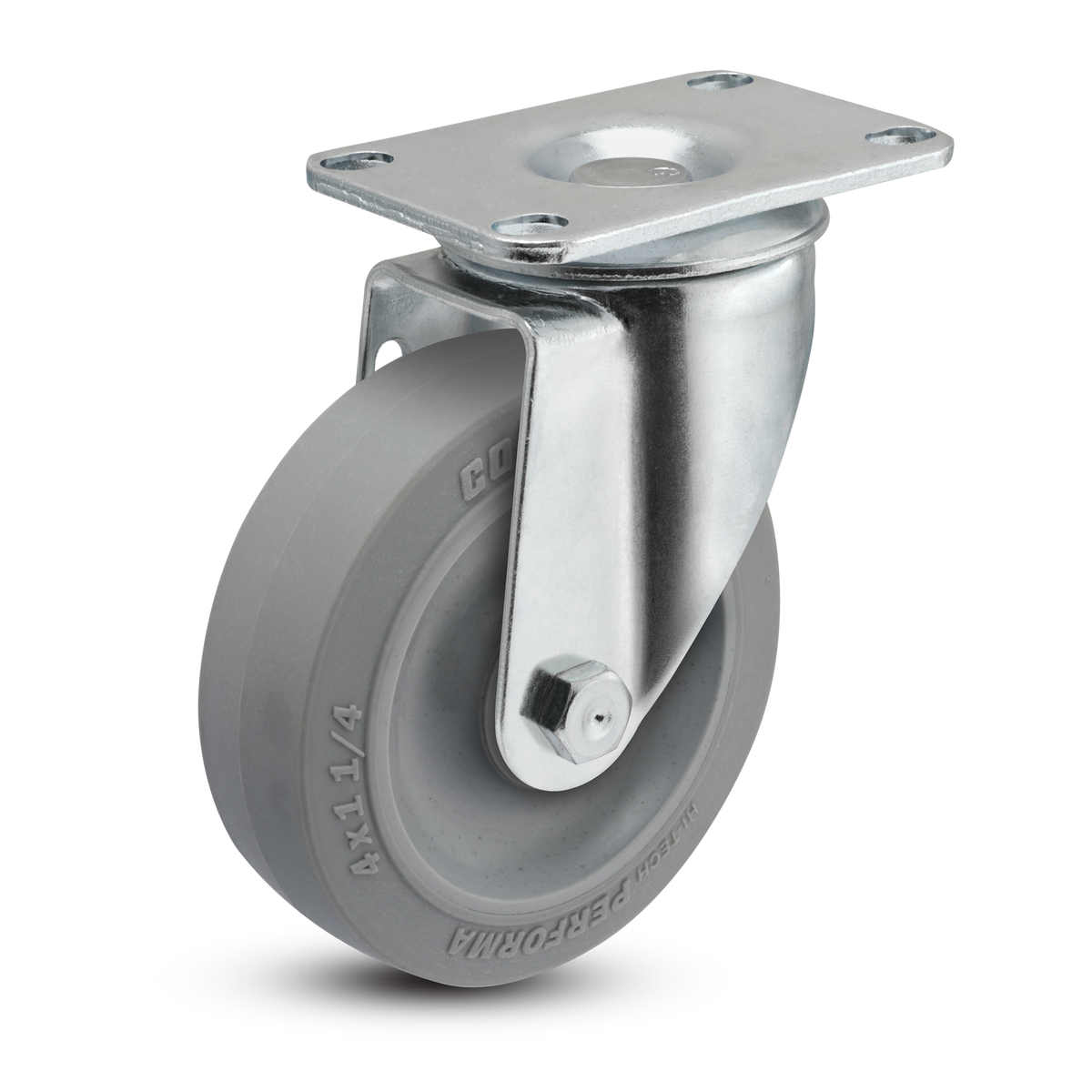

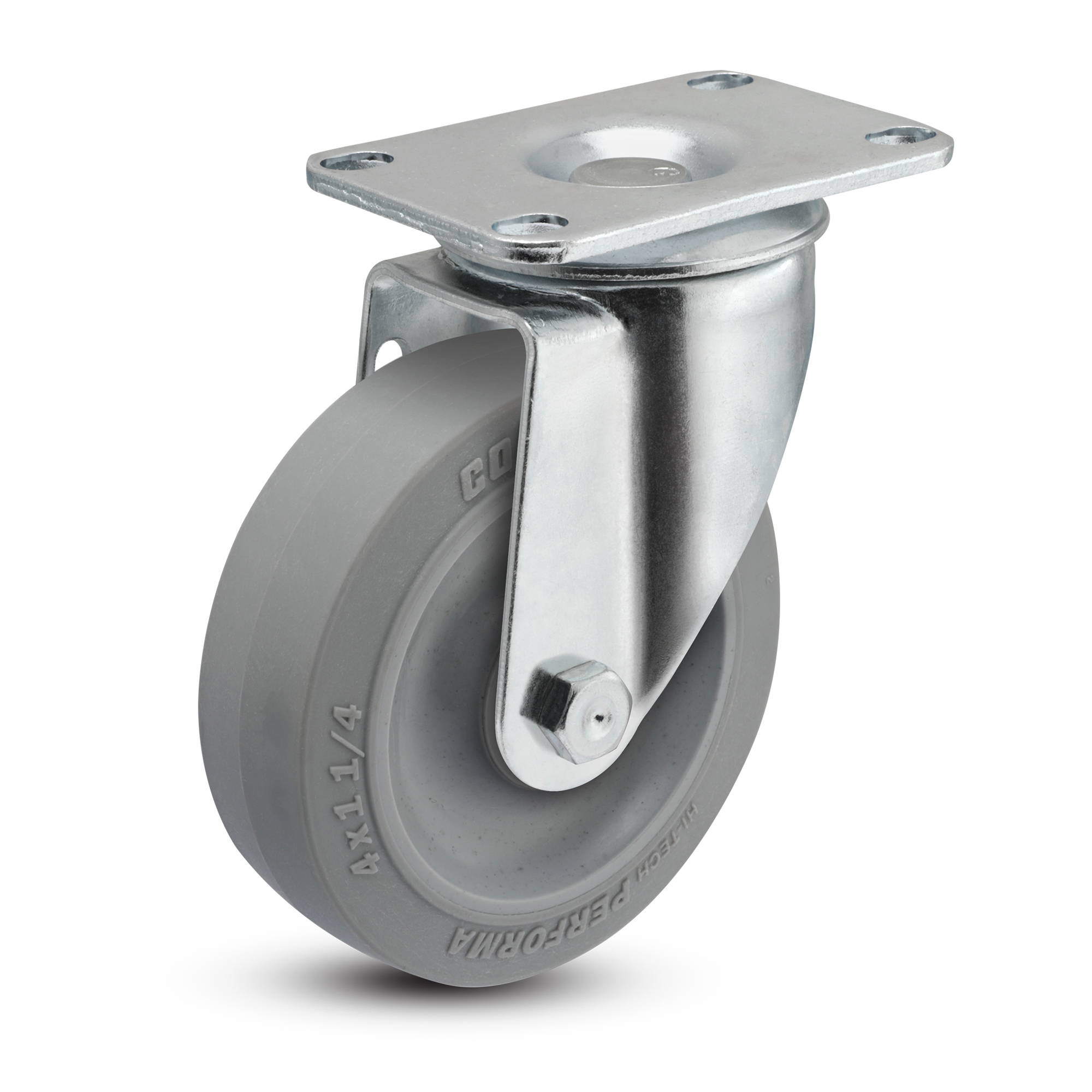

4" Performa Rubber 2 Series Swivel Caster - 2.04256.445
300 lbper caster
Regular Price
$14.24
Rubber Wheel
4" x 1-1/4" Wide Wheel
300 lb Load Capacity
Ball Bearing Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/8" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 3.2188 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.04256.445
Choose this 4-inch Performa rubber swivel for a busy institutional cart that needs a touch more clearance than a 3.5-inch wheel but the same quiet, non-marking roll, on a ball bearing built for traffic.
The 4-inch diameter splits the difference between the maneuverable small sizes and the threshold-clearing 5-inch, giving a cart a bit more roll over floor seams while staying easy to turn. The soft Grey Performa rubber tread keeps it quiet and floor-friendly, the 2 Series institutional standard, and the ball bearing carries the constant starts and stops of a high-traffic cart. The top plate bolts to a flat frame. It is the mid-size quiet caster for a cart that runs all shift on finished floors.
Ideal applications
- Mid-size nursing or food cart pushed all shift, sealed floor
- Quiet rig needing a little more roll than a 3.5-inch wheel
- High-traffic institutional cart on finished floors
Skip the top plate if the cart legs take a snap-in stem instead; the modular-stem 4-inch Performa 31MB40X88-03 presses into a round tube end.
Pairs with: the modular-stem 4-inch Performa 31MB40X88-03 where the frame uses tube-end stems instead of plates.
Wrong fit? Stem mount, or more load? See the modular-stem 31MB40X88-03 and the polyurethane 31JB35V-03.
Also in this family: the modular-stem 4-inch Performa 31MB40X88-03 and 5-inch Performa swivel 31MH50V-03, or the 2 Series caster collection.
