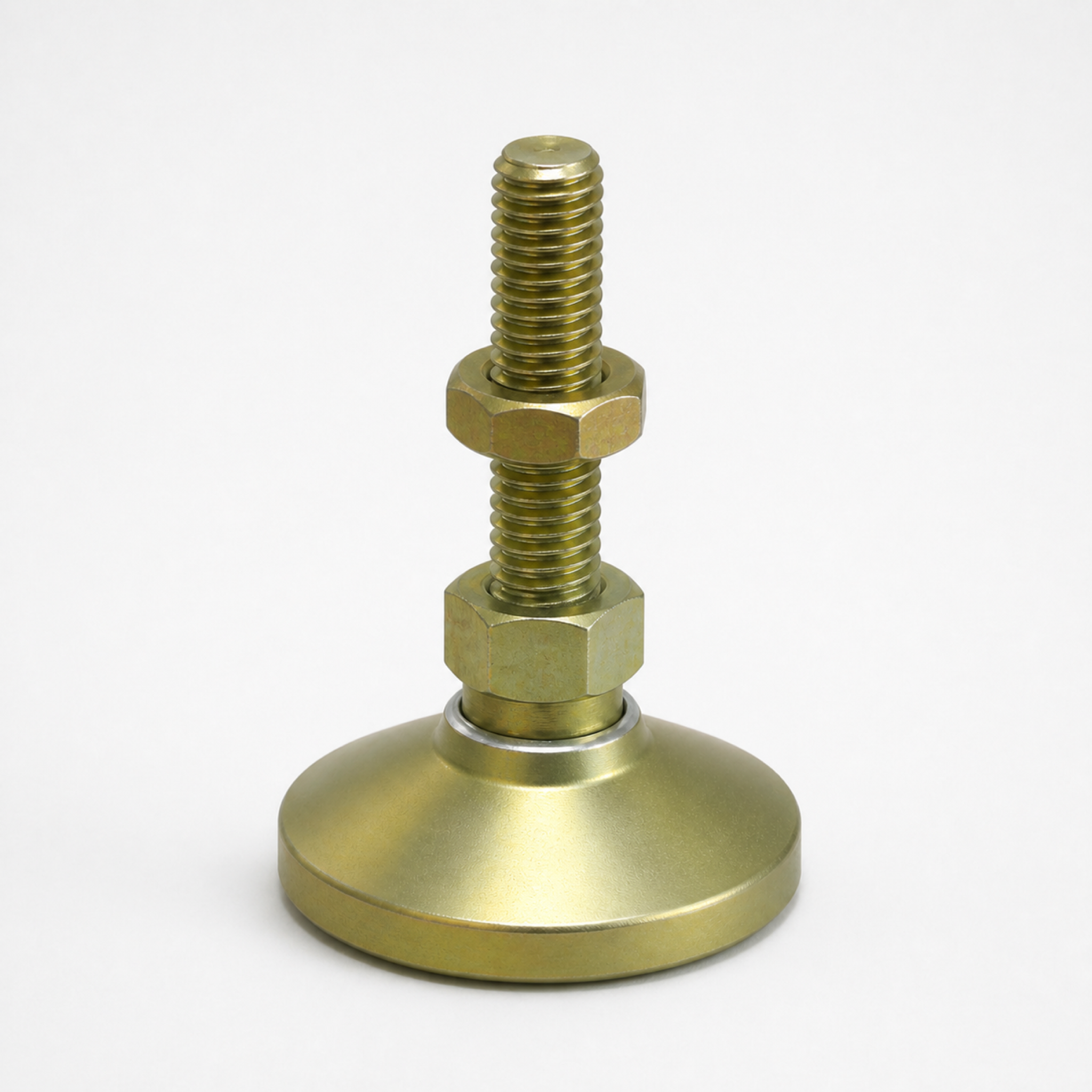

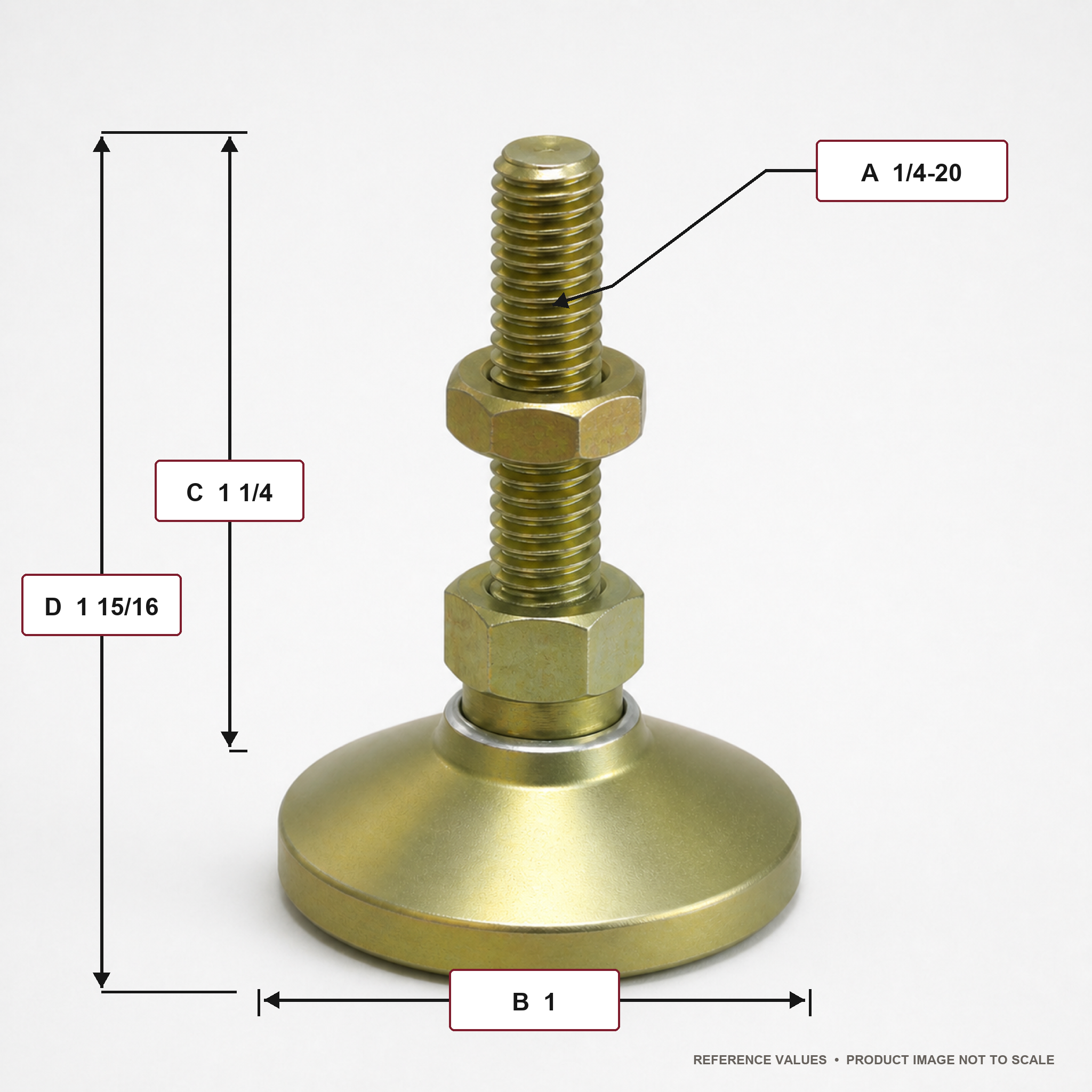

1/4"-20 x 1.25" Threaded Stud Steel Swivel 1" Base Leveling Mount - BSW-0

About This Leveling Mount - BSW-0

Pick the BSW-0 for the lightest leveling job in the line, a benchtop fixture or small enclosure that has to sit flat on a floor that pitches a little, where the 1/4-20 stud and 1-inch foot are all the footprint you need.

The 1-inch steel base tilts on its ball socket so it meets a sloped floor flat while the stud stays vertical, which spreads the load across the whole pad instead of one edge. A fixed foot set on a tilted floor rides on a single corner, rocks under the smallest nudge, and slowly backs its jam nut loose. The swivel pad takes that movement out before it starts.

Ideal applications

• Benchtop test fixture on a pitched lab floor, leveled once and locked
• Small electronics enclosure on a raised access floor with panel seams
• Light instrument stand that has to hold a bubble vial dead-level

Skip the BSW-0 if you are leveling real machinery; step up to the 3/8-16 BSW-1 with its wider 1.25-inch base.

Pairs with: three more BSW-0 under the same chassis for a four-corner set, from the Leveling Mounts collection.

Wrong fit? Heavier load, or a finished floor you cannot scratch? See the BSW-1 and the nylon-base BNYLA24.

Also in this family: BSW-1, BSW-2, and the full Leveling Mounts collection.
