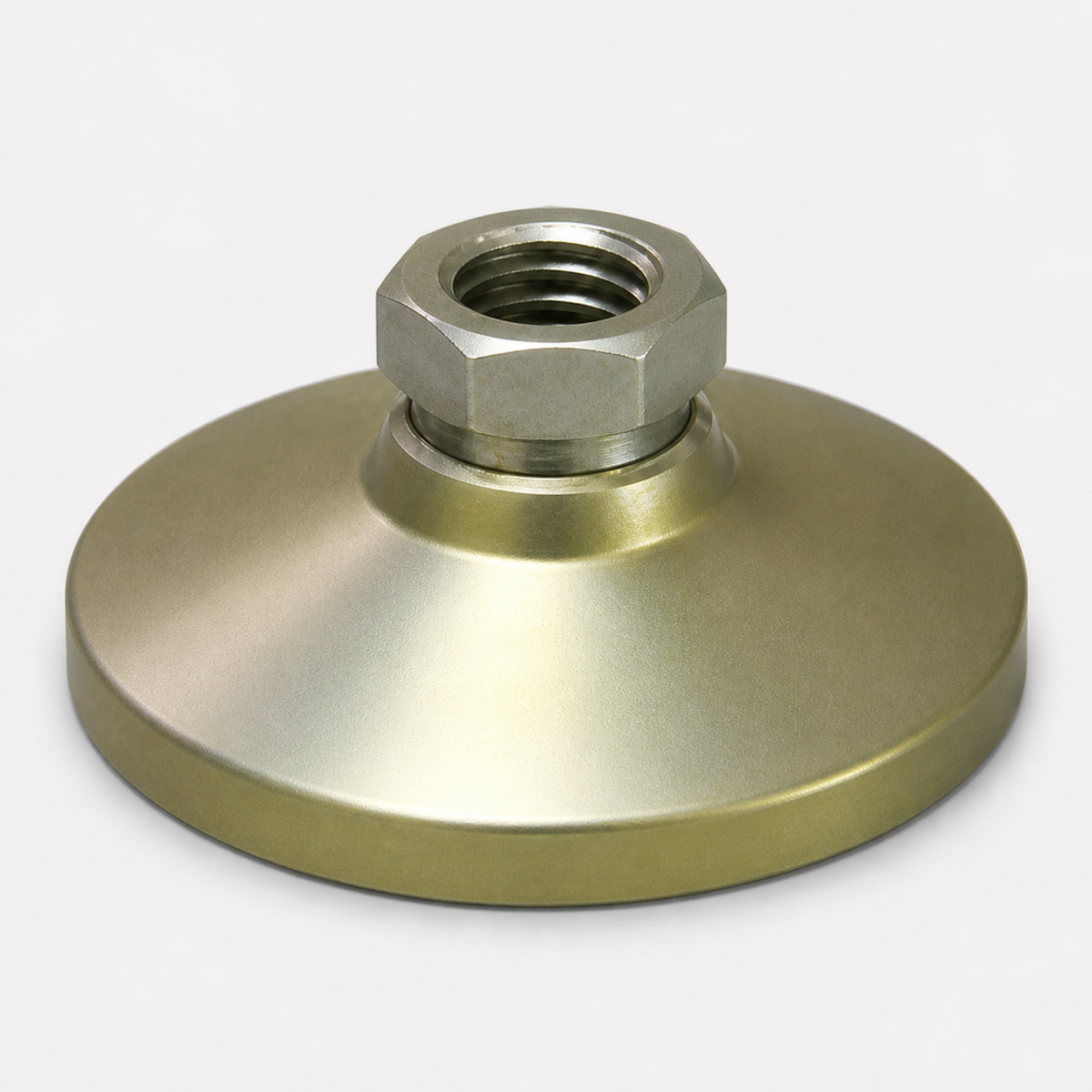

Tapped 2.5" Base Steel Swivel Leveling Mount for 5/8"-11 Thread -TSW-3

About This Leveling Mount - TSW-3

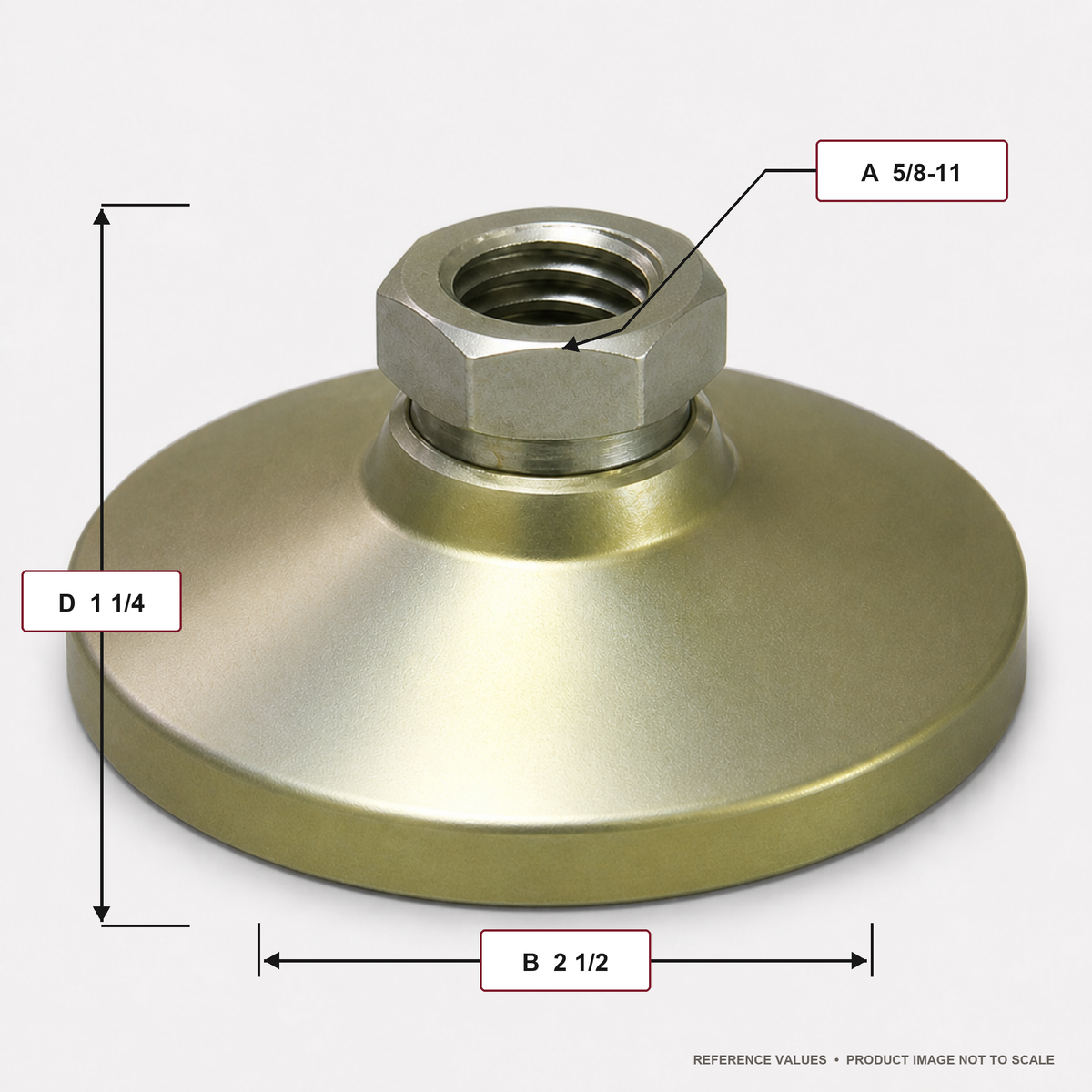

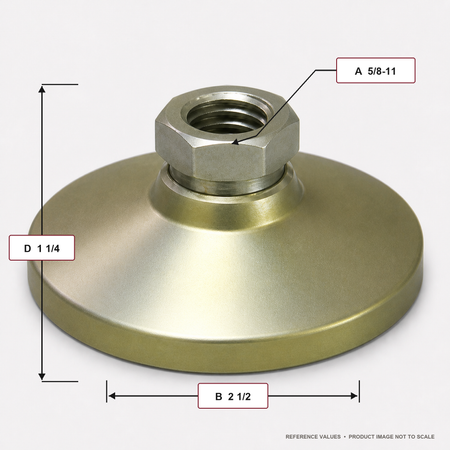

Choose the TSW-3 for a heavier frame where you still want to supply the stud, a tapped 2.5-inch swivel base threaded for a 5/8-11 rod that you size and replace without touching the pad.

The value of a tapped foot grows with load. Heavy legs bend studs, and on a fixed-stud mount a bent rod condemns the whole casting. Here the 5/8-11 socket lets you run out the damaged rod and run in a fresh one during a normal teardown, which keeps a costly machine on its original leveling pads through several rebuilds. The 2.5-inch base spreads that load on the slab, and the swivel seat keeps the foot flat as it does it.

Ideal applications

• Heavy machine base overhauled on a cycle where studs get renewed
• Frame moved between bays needing a longer rod at the new spot
• Loaded leg that has bent a stud and needs a clean replacement

Skip the TSW-3 if you would rather not source a rod; the BSW-3 comes with a 5/8-11 stud already fitted to the same 2.5-inch base.

Pairs with: a 5/8-11 threaded rod sized to the leg, locked into the socket with a jam nut.

Wrong fit? Want a fitted stud, or more base? See the BSW-3 and the tapped TSW-4.

Also in this family: TSW-2, TSW-4, and the full Leveling Mounts collection.
