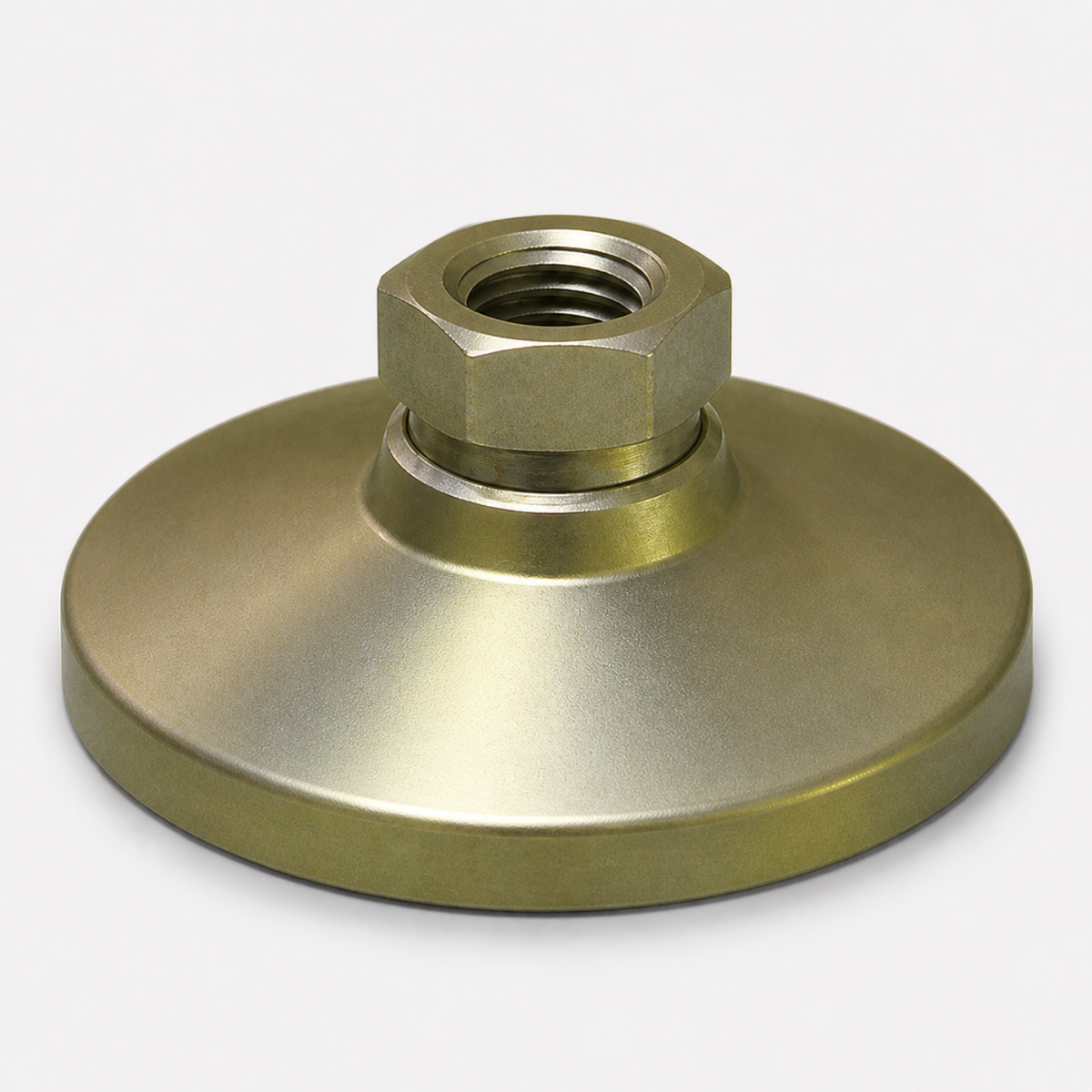

Tapped 3" Base Steel Swivel Leveling Mount for 3/4"-10 Thread - TSW-4

About This Leveling Mount - TSW-4

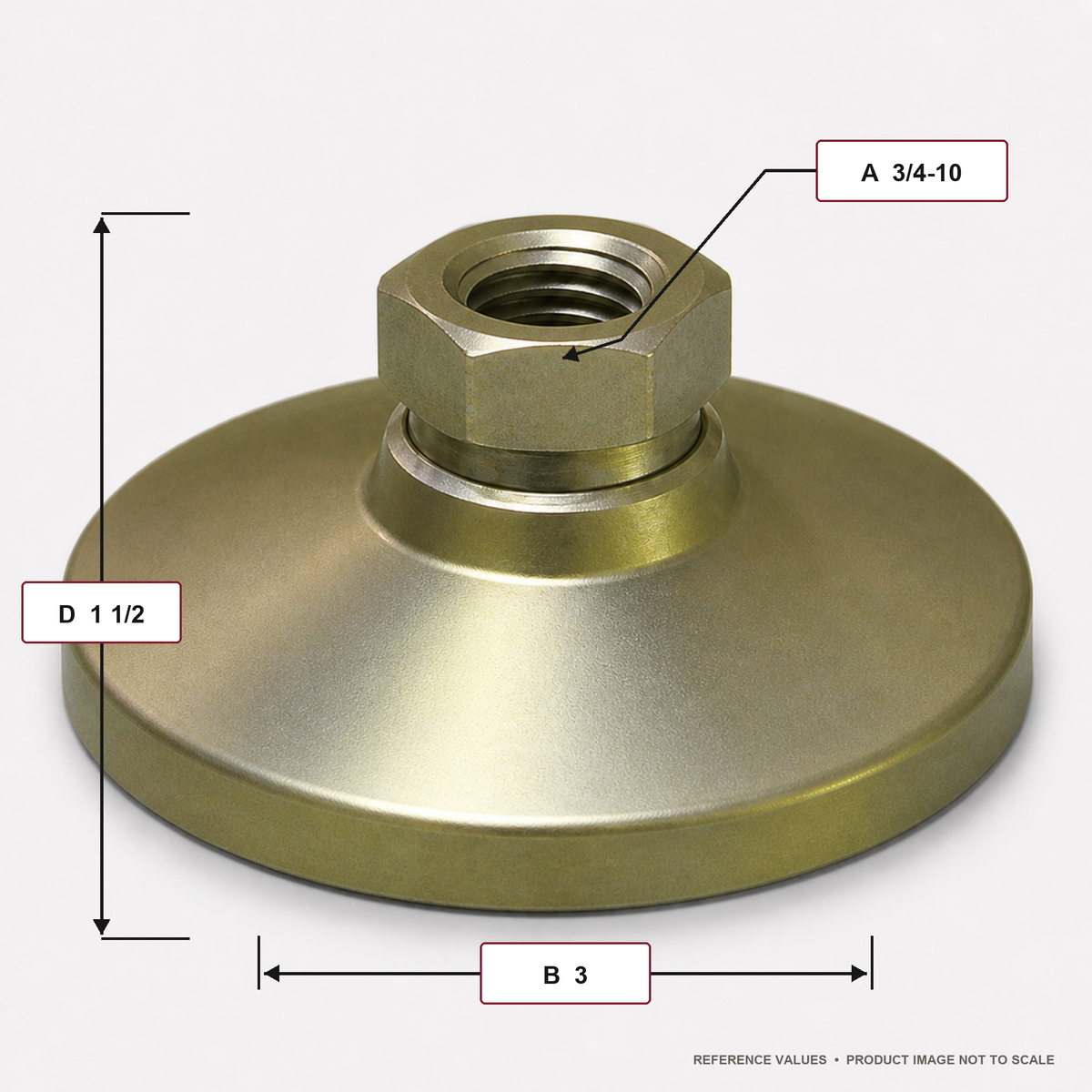

Specify the TSW-4 under heavy machinery when the stud should be a serviceable part, a tapped 3-inch swivel base bored for a 3/4-10 rod that you cut to the exact leg height and renew at overhaul.

A 3-inch foot carries the kind of load that punishes studs, and that is exactly where a tapped mount pays off: a coarse 3/4-10 rod is cheap to replace, the heavy cast pad and swivel seat are not. When a leg gets dropped or a rod galls, you change the rod and keep the foot. The articulating base holds full contact on an out-of-flat floor, so the heavy frame sits dead and stays where you set it through repeated service.

Ideal applications

• Heavy production machine on a maintenance plan that renews studs
• Frame set on a pitched floor needing a custom rod height per leg
• Loaded base relocated to a bay with a deeper anchor pocket

Skip the TSW-4 if you want the stud pre-installed and ready; the BSW-4 ships with a 3/4-10 stud on the same 3-inch base.

Pairs with: a 3/4-10 threaded rod cut to leg height, run into the socket and set with a jam nut.

Wrong fit? Want a fitted stud, or the largest base? See the BSW-4 and the tapped TSW-5.

Also in this family: TSW-3, TSW-5, and the full Leveling Mounts collection.
