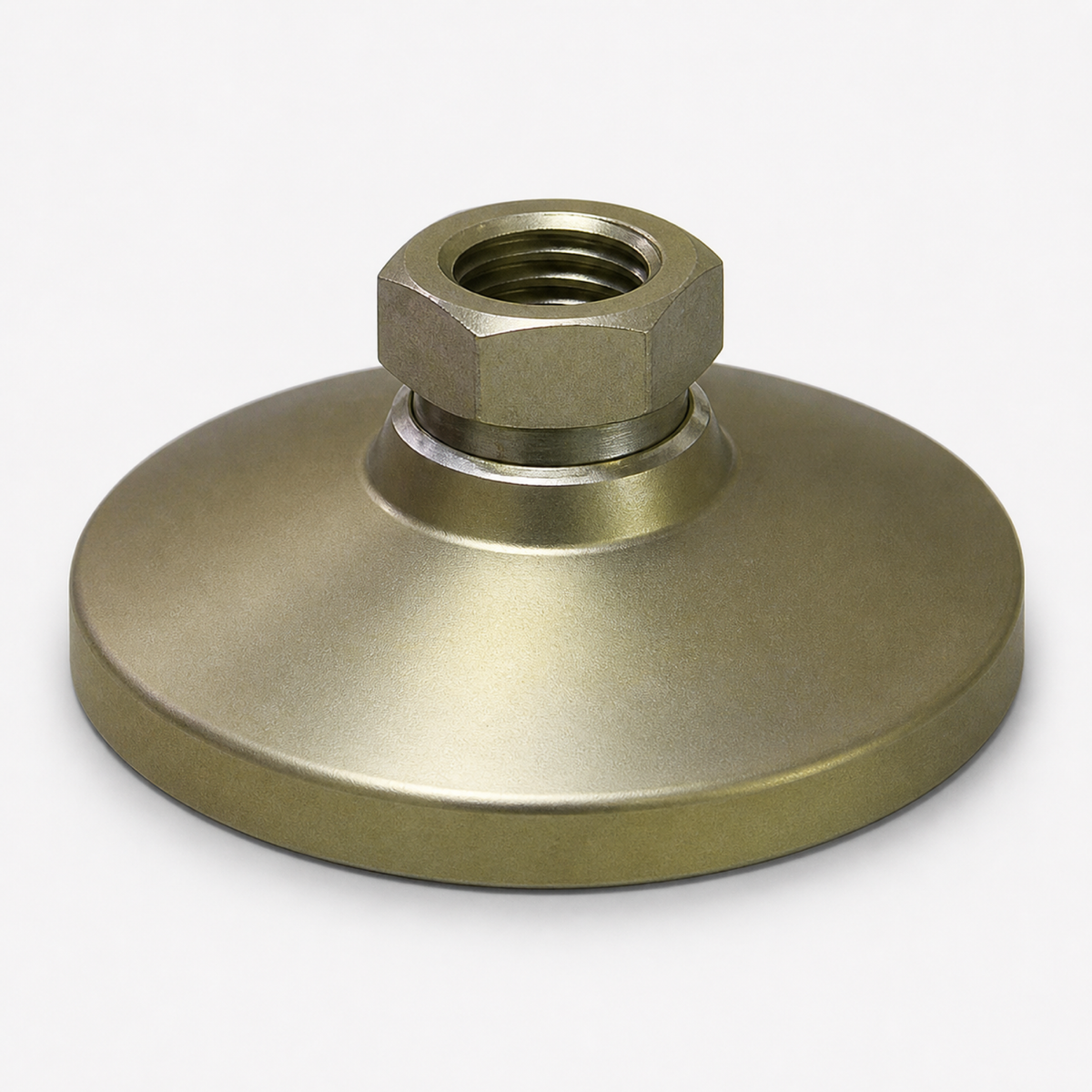

Tapped 4" Base Steel Swivel Leveling Mount for 1"-8 Thread - TSW-5

About This Leveling Mount - TSW-5

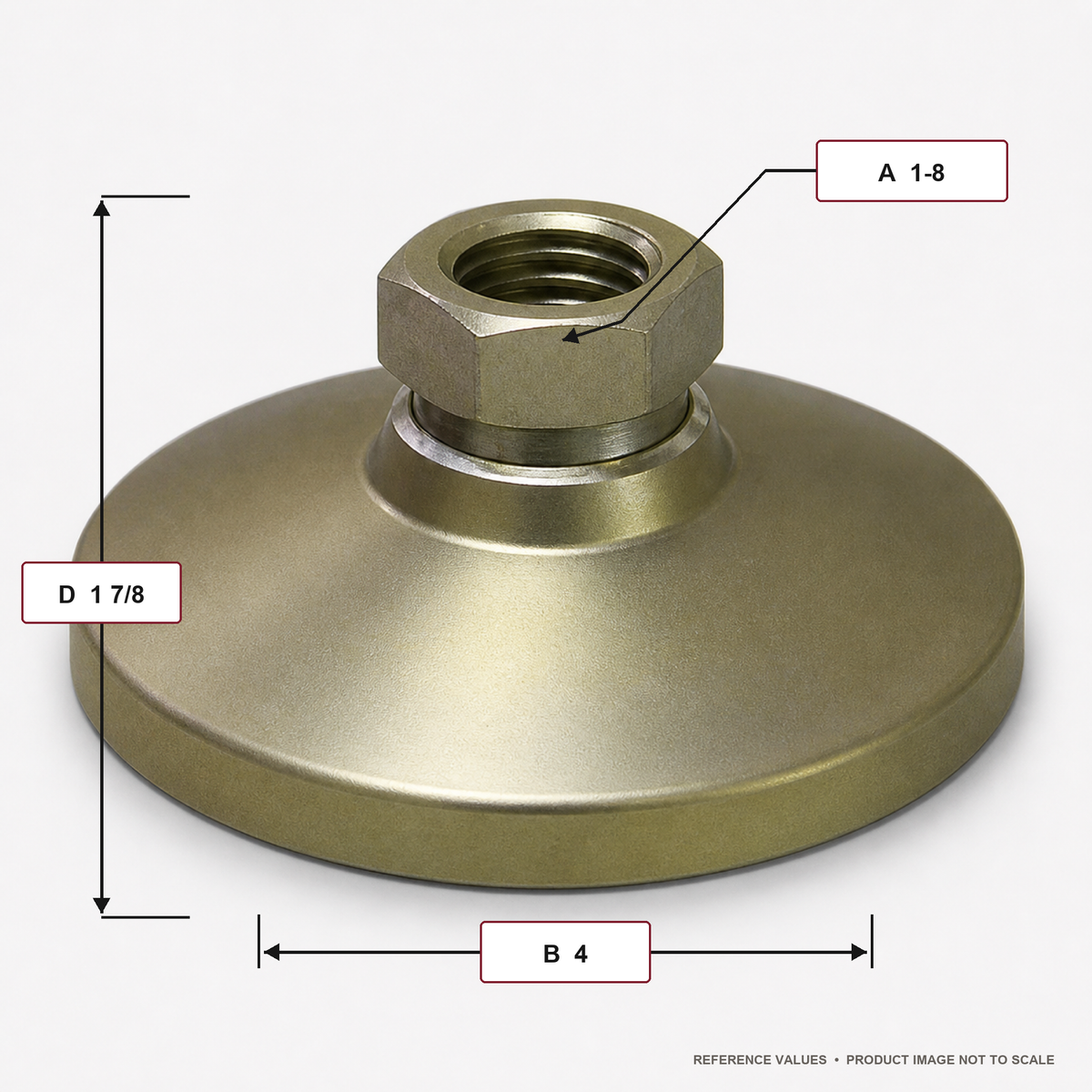

Reach for the TSW-5 at the top of the tapped range, a 4-inch swivel base threaded for a 1-8 rod, for a large machine where you set the stud length and keep the heavy pad through the equipment's whole service life.

The biggest foot in the series is also the one most worth saving, and the 1-8 socket lets you do it: when a long rod under a heavy base bends or galls, the rod is the consumable and the 4-inch pad stays. That choice matters most where leg heights differ across a big uneven floor, because you can cut each rod to its own corner instead of shimming. The swivel base spreads the full load flat and holds the level the rods set.

Ideal applications

• Large machine base with legs that level to different heights per corner
• Heavy frame rebuilt repeatedly where a new rod replaces a galled one
• Big skid on a sloped floor needing long custom rods at two legs

Skip the TSW-5 if you want a ready-to-bolt stud; the BSW-5 comes with a 1-8 stud already fitted to the 4-inch swivel base.

Pairs with: a 1-8 threaded rod cut per corner, run into the socket and locked with a jam nut.

Wrong fit? Want a fitted stud, or a smaller base? See the BSW-5 and the tapped TSW-4.

Also in this family: TSW-4, BSW-5, and the full Leveling Mounts collection.
