MFG PART: C0020120ZN-TPR01(GG)B

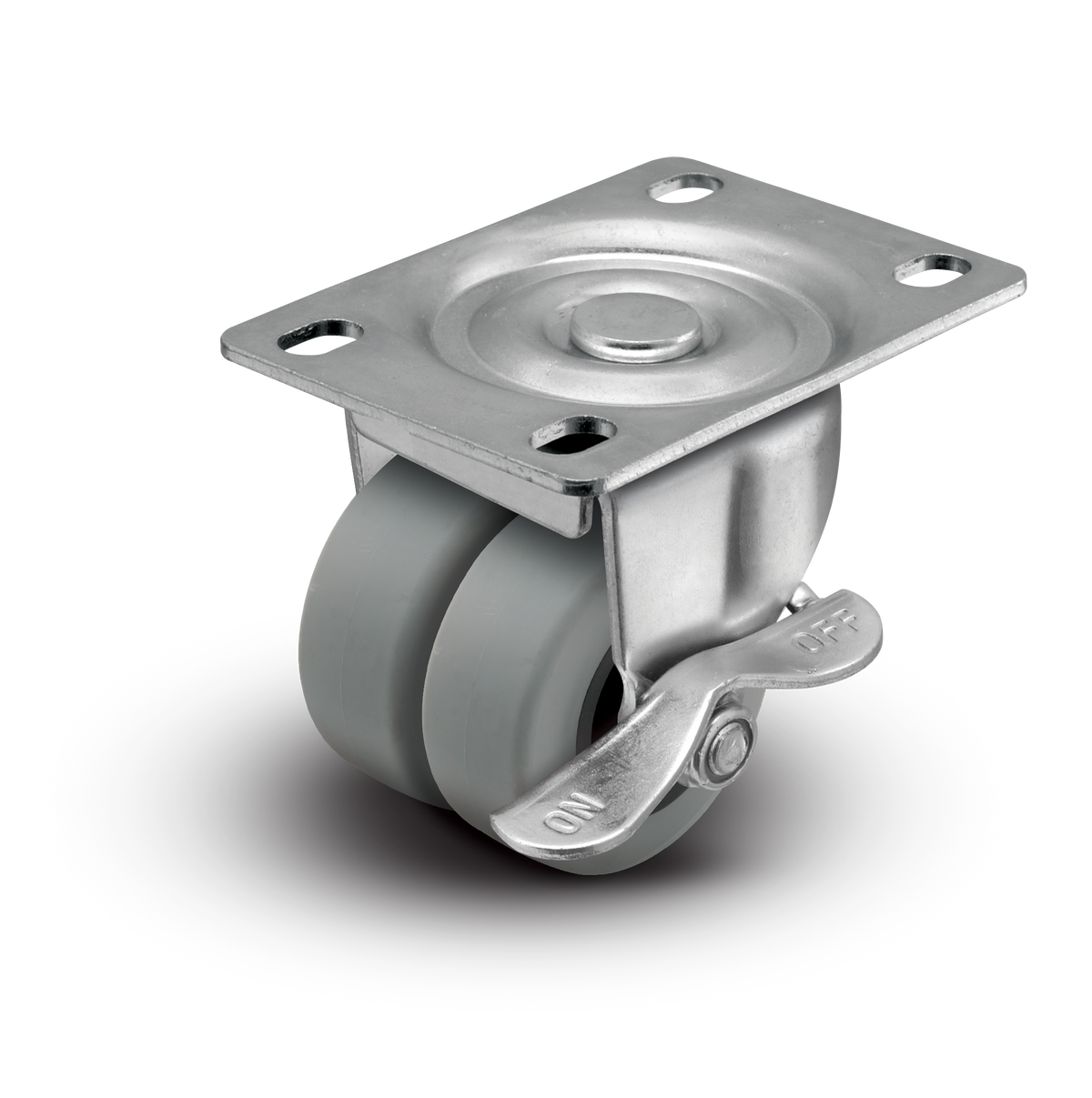

2" Rubber Swivel Caster - C0020120ZN-TPR01(GG)B
180 lbper caster
Regular Price
$11.21
Rubber Wheel
2" x 0.81" Wide Wheel
180 lb Load Capacity
Side Brake
Plain Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2" |
|---|---|
| Tread Width | 0.81" |
| Mount Height | 2-13/16" |
| Fastening Type | Top Plate |
| Fastening Size | 2-5/8" x 3-3/4" |
| Bolt Hole Spacing | 1-3/4" x 2-3/4" to 3" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 2.9375 |
Load & Performance
| Load Capacity | 180 lbs |
|---|---|
| Bearing Type | Plain |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 65(±5) Shore A |
| Brake Type | Side Brake |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Shepherd 00 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - C0020120ZN-TPR01(GG)B
Mount this braked 2-inch top-plate swivel under quiet equipment that rolls on finished floors and then has to hold its spot.
The wheel is soft grey thermoplastic rubber on a polyolefin core, a non-marking tread that rolls near-silent and spares the floor, working from -40 to 180°F. The side brake presses a shoe on the wheel so a cart parked in a hallway or an exam room stays put without anyone chocking it. It bolts down through a 2-5/8 by 3-3/4 inch top plate for a flat frame, and the low 2-13/16-inch height keeps the base close to the floor.
Ideal applications
- Flat-frame equipment in hallways and exam rooms that must park quiet
- Finished floors where a cushioned tread protects the surface
- Carts that roll silent, then lock without a separate floor chock
For a harder, lighter-rolling wheel that takes 230°F, the braked polyolefin C0020741ZN-POL01(KK)B swaps in on a threaded stem.
Pairs with: plain rubber top-plate swivels on the rolling corners, these braked ones opposite.
Wrong fit? No brake needed, or a stem mount? See the plain C0020120ZN-TPR01(GG) and the grip-ring C0020273ZN-POL01(KK)B.
Also in this family: the 1-1/2-inch-stem C0020748ZN-POL01(KK)B, or the full Shepherd collection.
3D CAD Model
