MFG PART: 110CA08201SFBC
8"x2" Cast Iron Swivel Caster w/ Face Brake - 110CA08201SFBC
1800 lbper caster
Regular Price
$109.56
Metal Wheel
8" x 2" Wide Wheel
1800 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|

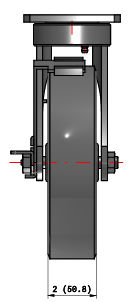

| Tread Width | 2" |

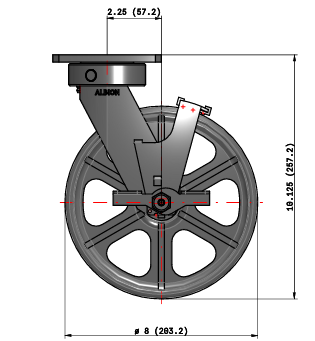

| Mount Height | 10-1/8" |
| Fastening Type | Top Plate |

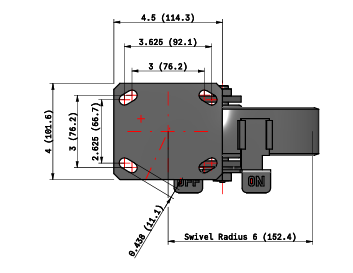

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1800 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA08201SFBC
Specify this 8-inch cast iron swivel for the heaviest hot cart that rolls long over debris and then has to park and hold, where a smaller wheel stalls on scale and a kingpin shears under the steering load.
The 8-inch diameter rolls over chips, hose, and joints that stop a smaller wheel and keeps a loaded cart moving down a long run, and Albion's 110 Contender Kingpinless swivel rides a heat-treated raceway with no kingpin to shear. The grey cast iron wheel carries a hard, heavy load from -100 to 800°F, and the face brake presses on the wheel to stop it once the cart is staged. The roller bearing turns the weight at a slow pace.
Ideal applications
- Heaviest hot carts that roll long and then park, to 800°F
- 8-inch braked corners clearing scale before they hold
- Foundry transfer rigs where kingpin swivels shear
If the floor is finished and cannot take a mark, the polyurethane 110AX06228SFBC brakes without gouging at a smaller diameter.
Pairs with: the plain 110CA08201S swivel on the rolling corners with these braked units opposite.
Wrong fit? Smaller wheel, or no brake? See the 6-inch brake 110CA06201SFBC and the plain 110CA08201S.
Also in this family: the 4-inch cast iron brake 110CA04201SFBC, or the full kingpinless caster collection.
