MFG PART: 2.04256.445 BRK5

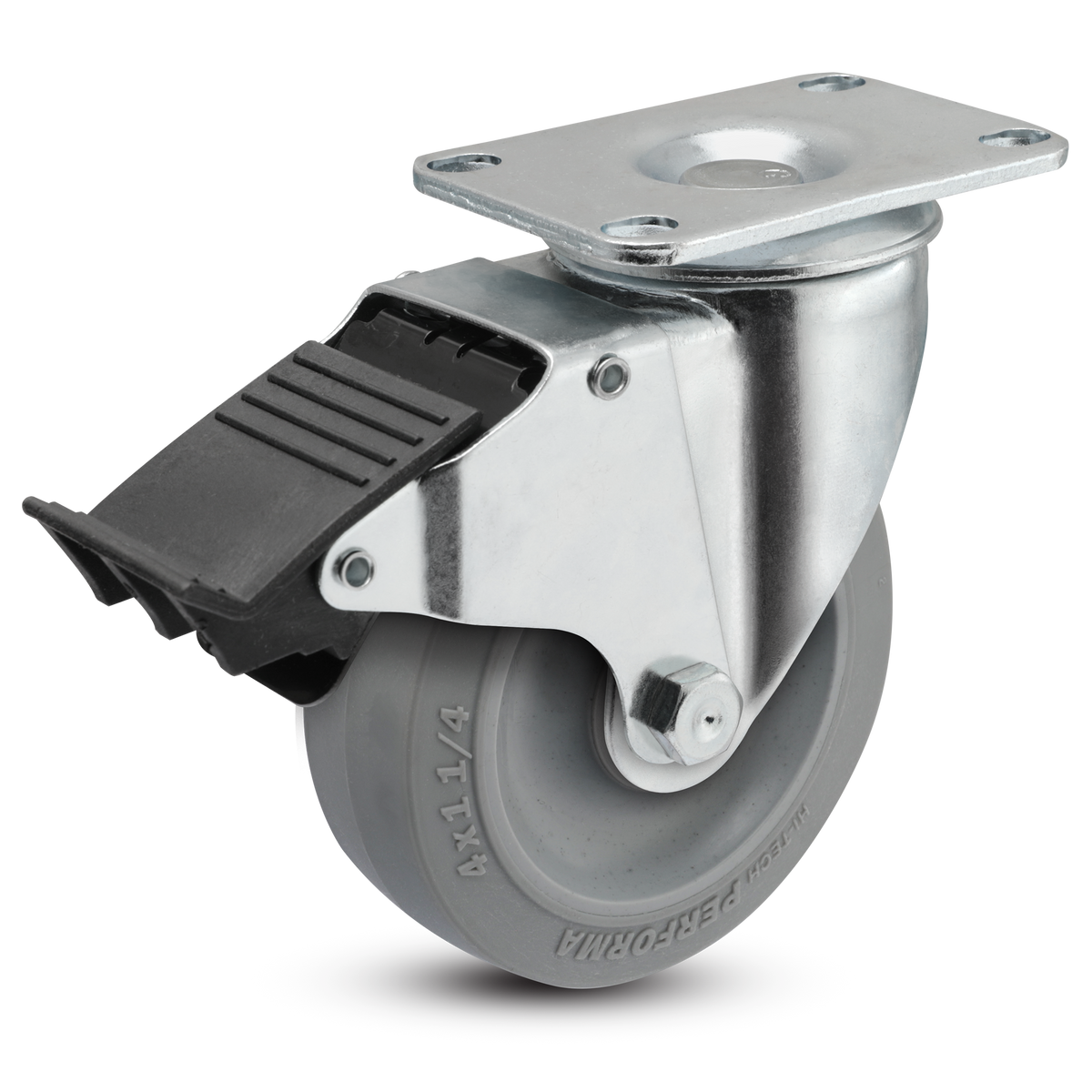

4" Performa Rubber 2 Series Swivel Caster - 2.04256.445 BRK5
300 lbper caster
Regular Price
$22.22
Rubber Wheel
4" x 1-1/4" Wide Wheel
300 lb Load Capacity
Total Lock Brake
Ball Bearing Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/8" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 4.7500 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
| Brake Type | Total Lock Brake |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.04256.445 BRK5
Specify this 4-inch Performa rubber swivel with the ball bearing, total lock brake, and top plate for a busy flat-framed cart that must park dead still, the ball bearing that rolls the load easy and the total lock that pins both the wheel and the swivel.
The ball bearing rolls a loaded cart easy while you move it, the total lock pins the wheel and the swivel so the cart neither rolls nor turns once parked, the plate bolts to a flat frame, and the 4-inch Performa rubber tread cushions the load and clears thresholds. Confirm your bolt pattern matches the 3-5/8 by 2-1/2 inch plate before you order. It is the easy-rolling fully-locking bolt-on big-wheel rubber swivel for a busy flat-framed cart that must hold its spot.
Ideal applications
- Busy flat-framed cart that rolls easy but parks dead still
- Ball bearing between full-lock stops on a 4-inch wheel
- Station where a top lock alone would let it creep
Only need to stop the roll, or static drain? A top-lock brake or a conductive caster fits a different need.
Pairs with: the top-lock rubber ball plate swivel 31MB40V02-03 on a matched set.
Wrong fit? Want a top lock or static drain? See the top-lock rubber ball plate swivel 31MB40V02-03 and the conductive total-lock rubber plate swivel 31MB40V05T-03.
Also in this family: the wide-plate ball total-lock swivel 33MB40V05-03, or the 2 Series caster collection.
3D CAD Model
