MFG PART: ER4X2CIRTBK

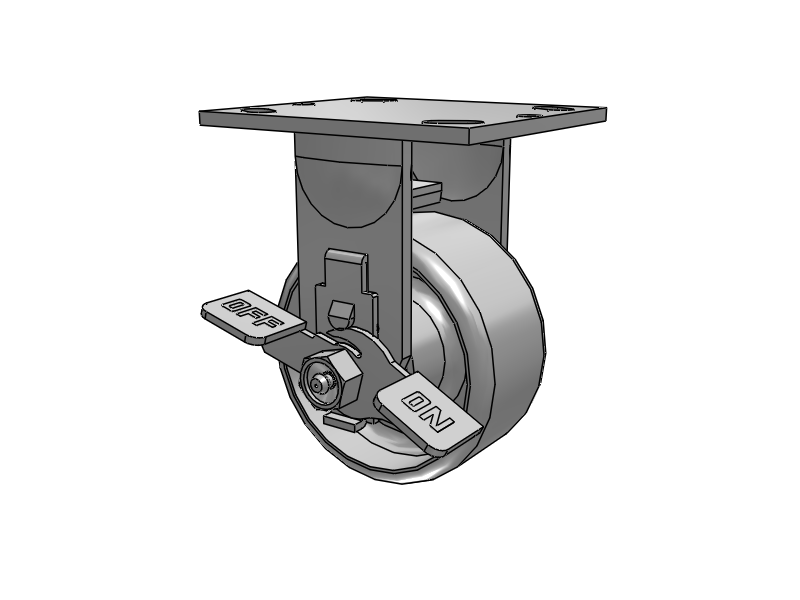

E-line Rigid 4"x2" Cast Iron Wheel 4"x4.5" Plate Caster With Tread Lock Brake; Part# ER4X2CIRTBK
800 lbper caster
Regular Price
$35.83
Metal Wheel
4" x 2" Wide Wheel
800 lb Load Capacity
Tread Lock Brake
Roller Bearing
Top Plate Mount
QuickShip program: most items ship same or next business day
Specifications

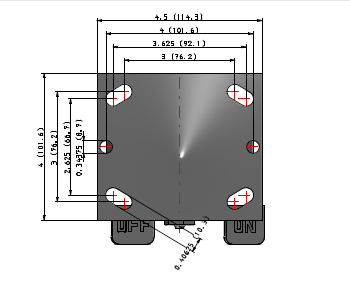

Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 800 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 600°F |
| Min Temperature | -40°F |
| Wheel Durometer | N/A (Metal) |
| Brake Type | Tread Lock Brake |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey Metallic |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Rigid Caster with Brake |
| Brand / Series | Pemco E-line |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - ER4X2CIRTBK
Set this 4-inch cast iron rigid on a compact high-heat cart corner that has to stay put on a grade.
The tread lock brake presses a pad onto the cast iron wheel to stop it rolling, holding a parked cart on a slope, which a rigid corner that cannot swivel away makes worth having. The cast iron wheel holds up from -40 to 600°F for an oven or foundry line where rubber or poly would soften, and at 4 inches it keeps the deck low. The trade is a hard, noisy wheel that damages a soft floor, so it suits bare concrete. It runs on a roller bearing and bolts on a 4 by 4-1/2-inch top plate.
Ideal applications
- Compact 4-inch cast iron corners that hold on a grade in heat
- Tread lock stopping a 4-inch cast iron wheel to 600°F
- Rigid braked corner on bare concrete at a low deck
If the corner only needs to roll, the rigid plain cast iron casters drop the brake.
Pairs with: plain E-Line cast iron rigid and swivel casters on the other corners.
Wrong fit? Need no brake or a bigger wheel? See the 5-inch tread-lock ER5X2CIRTBK and the 4-inch swivel cam-brake ES4X2CIRCAMS.
Also in this family: the 6-inch tread-lock ER6X2CIRTBK, or the full Pemco collection.
