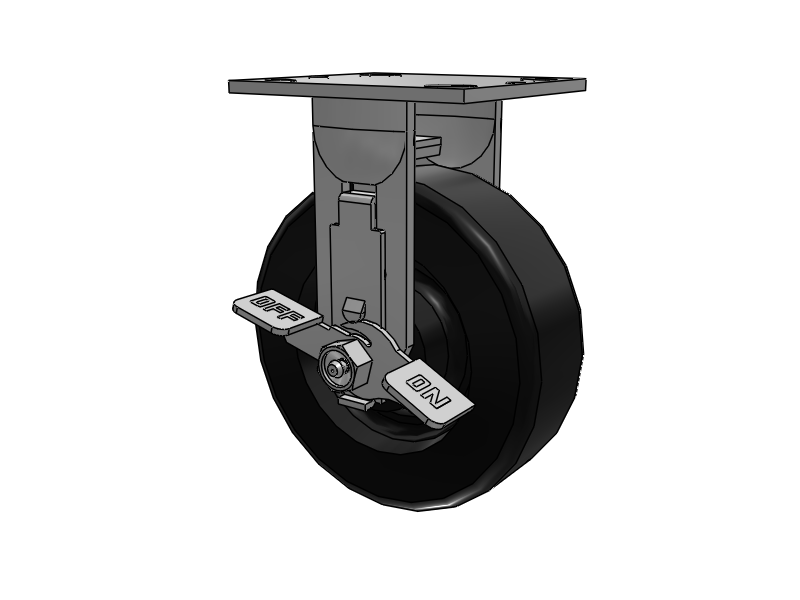

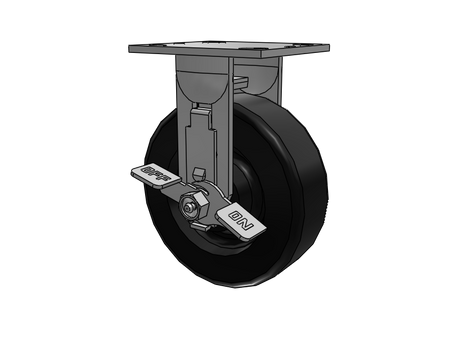

E-line Rigid 6"x2" Phenolic USA-Made Wheel 4"x4.5" Plate Caster w/Tread Lock Brake; Part# ER6X2PHNBTBK

About This Caster - ER6X2PHNBTBK

Set this 6-inch phenolic rigid on the back corners of a heavy hand-pushed cart that crosses a rough floor and then has to hold, where a ball bearing keeps the push light and the brake locks the corner.

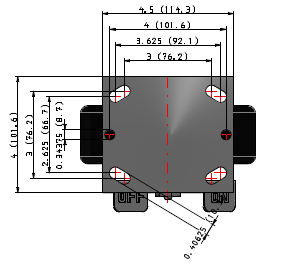

The wheel is hard resin-bonded phenolic from Pemco: it carries a heavy load on a small footprint and shrugs off oil, grease, and solvent from -45°F to 250°F. The precision ball bearing cuts the push effort so a loaded cart moves by hand, the tall 6-inch wheel clears seams and debris, and the tread-lock brake presses on the wheel to hold the cart still. The rigid fork holds the line, and the brown phenolic wheel bolts on through a 4 by 4-1/2 inch top plate.

Ideal applications

• Back corners of heavy hand-pushed carts, braked
• Ball bearing for a light push, brake to hold the tall cart
• Tall 6-inch phenolic wheel resisting oil to 250°F

If the corner only rolls, the plain ER6X2PHNB is the no-brake version.

Pairs with: plain ER6X2PHNB rigids on the corners that only roll.

Wrong fit? No brake needed or a roller bearing? See the plain ER6X2PHNB and the Delrin ER6X2PHND.

Also in this family: the 4-inch ball tread-lock ER4X2PHNBTBK, or the full Pemco collection.
