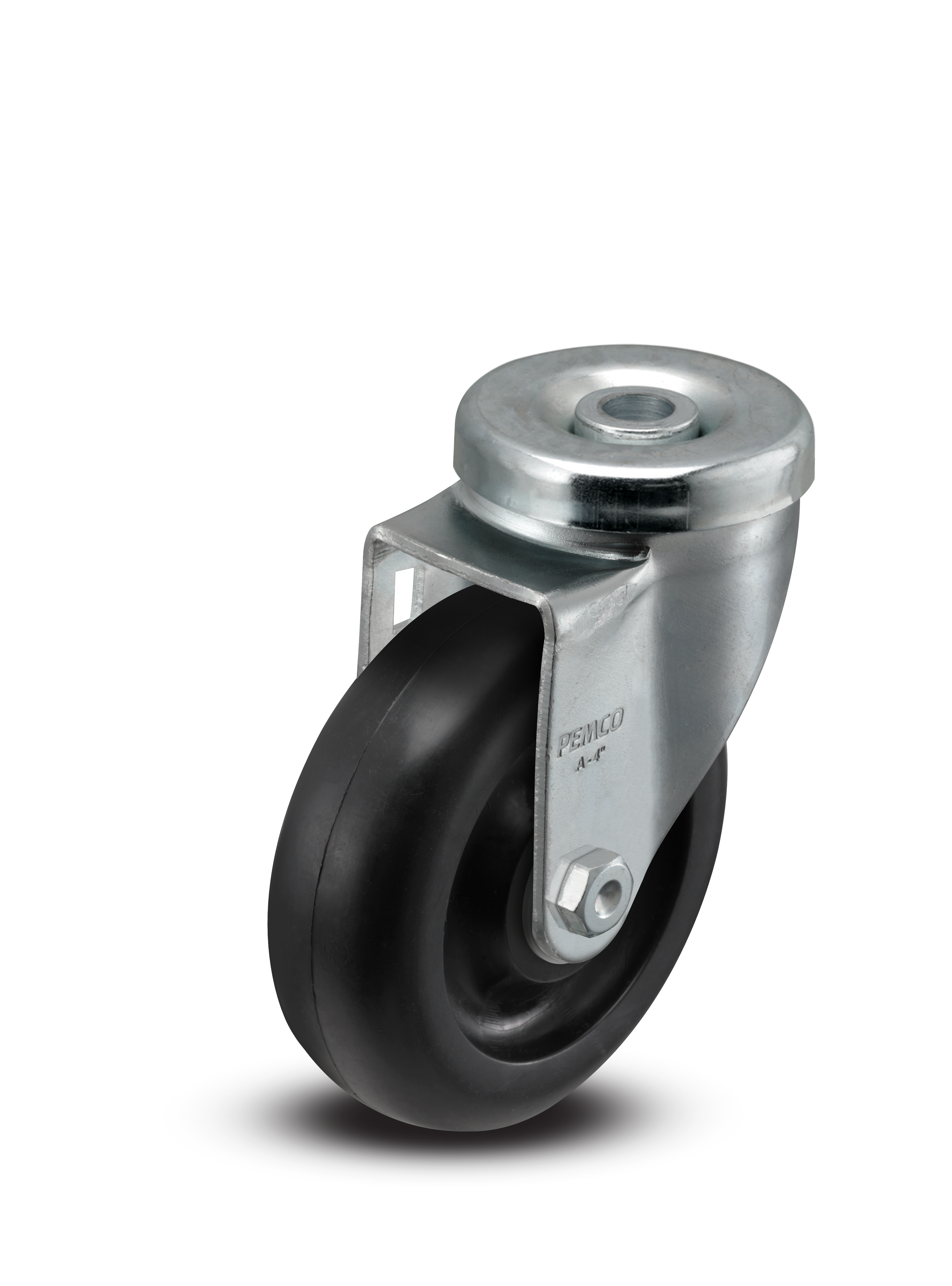

A-line 4" x 1.25" Polyolefin (POD) Wheel Caster With Hollow Kingpin - Part# AS40H1POD

About This Caster - AS40H1POD

Choose this 4-inch A-line swivel for a frame that mounts a caster with a single bolt rather than a plate or a leg stem.

The hollow kingpin lets a 1/2-inch bolt pass through the center of the swivel and thread into the equipment frame, which is the economical way OEM builders hang a caster where there is a bolt hole and no room for a top plate. The wheel is a hard polyolefin on a polypropylene core, a black tread that rolls easy and resists moisture from -45 to 180°F, and the Delrin plain bearing runs maintenance-free.

Ideal applications

• OEM frames that mount a caster with one bolt, no plate
• Economical builds where a hollow kingpin saves the plate
• Maintenance-free Delrin on a hard polyolefin wheel

For a corner that must hold the cart still, the side-brake AS40H1PODSB locks the wheel.

Pairs with: matching hollow-kingpin A-line swivels on the other bolt holes of the same frame.

Wrong fit? Need a brake or a non-marking wheel? See the total-lock AS40H1PODTL and the grey TPU AS40H1TPU.

Also in this family: the grip-ring AS40G1POD and the top-plate AS40P1POD, or the full Pemco collection.
